48 Volt 500 Watt 2500 RPM Electric Scooter Motor 48V 500W 2500RPM electric scooter motor.Powerful four brush permanent magnet design with 100% ball bearing construction.Includes 11 tooth sprocket for #25 chain. 8.5mm x 10mm sprocket mounting area.18" long power leads. Different size sprockets are available for this motor.Shaft rotation reversible by reversing power leads. Dimensions: 4.2" (106mm) wide x 5.275" (134mm) long excluding shaft, 6-1/2" long including shaft. Shaft is 1" long and...

48V 500W Speed Controller with Reverse Reversible speed controller operates in either forward or reverse mode. Designed for 24 Volt motors up to 500 Watts. Maximum current 20 Amps. Under Voltage protection 42 Volts. Current limiting feature helps prevent controller and motor damage due to over-current conditions. Under voltage protection feature helps prevent over-discharge and extends the life of the battery pack. Uses standard 3-wire variable speed hall-effect throttle. Wiring Directions...

48 Volt 750 Watt 2800 RPM Electric Scooter Motor 48V 750W 2800RPM electric scooter motor.Powerful four brush permanent magnet design with 100% ball bearing construction.Includes 11 tooth sprocket for #25 chain. 8.5mm x 10mm sprocket mounting area. Different size sprockets are available for this motor. 18" long power leads. Shaft rotation reversible by reversing power leads. Dimensions: 4.2" (106mm) wide x 5.275" (134mm) long excluding shaft, 6-1/2" long including shaft. Shaft is 1" long and...

48 Volt 750 Watt 2800 RPM Electric Scooter Motor with Mounting Base 48V 750W 2800RPM electric scooter motor. Powerful four brush permanent magnet design with 100% ball bearing construction. Includes 11 tooth sprocket for #25 chain. 8.5mm x 10mm sprocket mounting area. Different size sprockets are available for this motor. 18" long power leads. Shaft rotation reversible by reversing power leads.Dimensions: 4.2" (106mm) wide x 5.275" (134mm) long excluding shaft, 6-1/2" long including shaft....

48 Volt 750 Watt Brushless Gear Motor Premium Unite Brand Motor (Unite motors can not be compared to inferior brands.)10 Tooth Sprocket for #41 and #420 Chain (The photo shows a sprocket with more than 10 teeth.)Motor Speed: 2880 RPMGear Reduction Ratio: 6 to 1Output Shaft Speed: 480 RPMRated Current: 21ARated Torque: 2.38NmWeight: 7KGPhase: 120 DegreesMotor Phase Terminals: 5.2mm ID Ring TerminalsMotor Hall Sensor Terminals: DJ611-2.8*0.5A Male TerminalsCable Length: 24 Inches ...

48V 750W Electric Scooter Speed Controller Designed for 48 Volt DC electric scooter and bike motors up to 750 Watts. Maximum current 25 Amps. Under Voltage protection 42 Volts. Current limiting feature helps prevent controller and motor damage due to over-current conditions. Under voltage protection feature helps prevent over-discharge and extends battery life. Compatible with all standard 3-wire variable speed hall-effect throttles. Item # SPD-48750 Wiring Directions ...

HRN-48, 48 Volt Electric Scooter Horn

48 Volt Electric Scooter or Bicycle Handlebar Mount Headlight Dashboard with Key Switch, Horn, and Battery Power Indicator 48 Volt handlebar mount headlight with Off - On - On+Headlight 3-position key switch, horn, and battery power level indicator. Power indicator is calibrated for 48 Volts lead-acid battery packs. Has a +48V output wire for tail light. Built-in 48 Volts DC horn requires an external horn switch to operate. Fits standard 7/8" (22mm) electric scooter and bike handlebars. Wiring...

48-60V 1000W Electric Cargo Tricycle and Truck Speed Controller with Throttle Made for electric cargo tricycles and trucks. Cast aluminum case with large heat sinks and thick 10 gauge wires. Epoxy sealed case for a high level of water resistance. 48-60 Volt input range. Designed for 48 and 60 Volt motors up to 1000 Watts. Includes a standard variable speed hall-effect twist throttle with matching left hand side grip. Works with both 48 and 60 Volt battery packs. Compatible with standard...

48-60V 1500W Electric Cargo Tricycle and Truck Speed Controller with Throttle Made for electric cargo tricycles and trucks. Cast aluminum case with large heat sinks and thick 10 gauge wires. Epoxy sealed case for a high level of water resistance. 48-60 Volt input range. Designed for 48 and 60 Volt motors up to 1500 Watts. Includes a standard variable speed hall-effect twist throttle with matching left hand side grip. Works with both 48 and 60 Volt battery packs. Compatible with standard...

48-60V 2200W Electric Cargo Tricycle and Truck Speed Controller with Throttle Made for electric cargo tricycles and trucks. Cast aluminum case with large heat sinks and thick 10 gauge wires. Epoxy sealed case for a high level of water resistance. 48-60 Volt input range. Designed for 48 and 60 Volt motors up to 2200 Watts. Includes a standard variable speed hall-effect twist throttle with matching left hand side grip. Works with both 48 and 60 Volt battery packs. Compatible with standard...

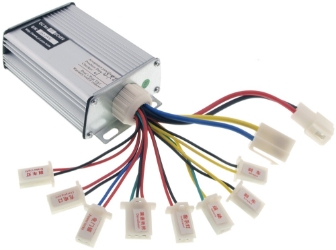

48V 1000W Electric Scooter Speed Controller Designed for 48 Volt DC electric scooter and bike motors up to 1000 Watts. Maximum current 30 Amps. Under Voltage protection 42 Volts. Current limiting feature helps prevent controller and motor damage due to over-current conditions. Under voltage protection feature helps prevent over-discharge and extends battery life. Compatible with all standard 3-wire variable speed hall-effect throttles.Compatible top speed limiter: THR-LIMITER1 Wiring...
