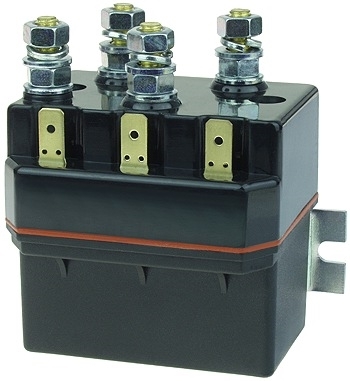

24 Volt 150 Amp Motor Reversing Contactor
- 24 Volts (24V) DC
- 150 Amp (150A) Contacts
- Coil power consumption 8 Watts.
- Has no-load rated make or break contacts so it needs to be used with a speed controller and the vehicle should be stopped before switching between forward, park, and reverse directions.
- Applies electronic braking to the motor when the switch is in the park position which helps prevent damage to the controller in the event of accidentally switching directions when the vehicle is in motion and provides a parking brake when the switch is in the park position.
- 1/4" wide push-on spade terminals for the coils and 6mm (1/4") posts for the contacts.
- Dimensions including mounting tabs and terminals are 3-1/8" wide x 2-1/4" deep x 3-1/4" high.
Wiring Diagrams
