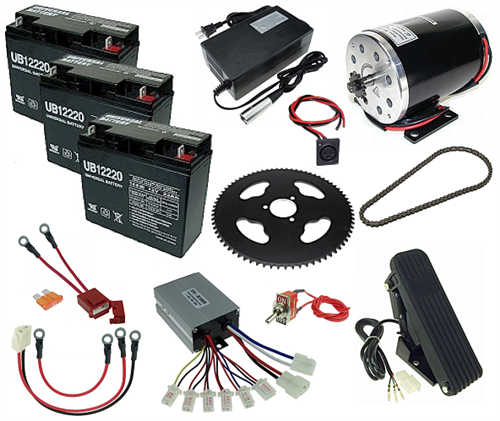

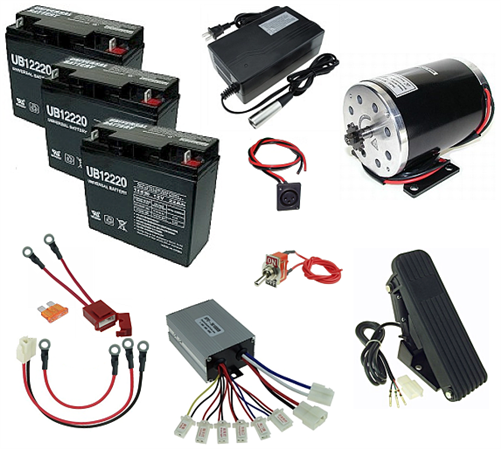

Wire Routing Chart Select the wire lengths of the kit above. A 10-tooth motor sprocket for #35 chain is included with this kit. We also have an 11-tooth motor sprocket for #41 and#420 chain if needed.

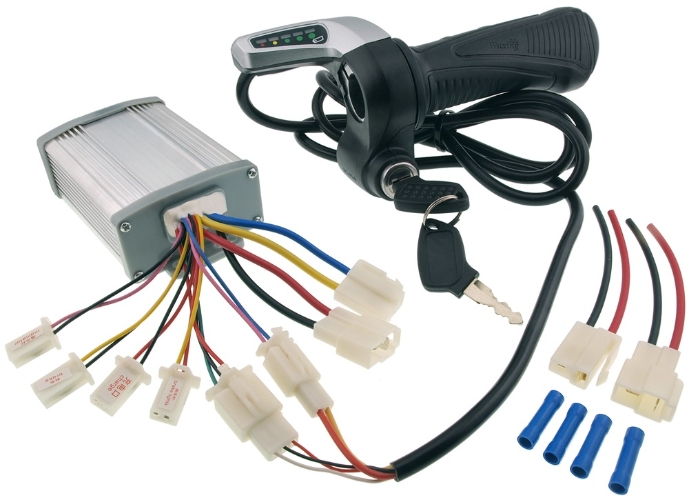

Wire Routing Chart Select the wire lengths of the kit above. A 10 tooth motor sprocket for #35 chain is included with this kit. Power off, power on forward, and power on reverse are activated by the three position key switch. ...

Wire Routing Select the wire lengths of the kit above. The motor in this kit has an 11-tooth sprocket for 8mm chain and a 10-tooth motor sprocket for #35 chain is included with this kit. We have wheel and axle sprockets for all chain sizes which are compatible with this kit. We also have sprockets for #41 and #420 chain which fit the motor in this kit. Click below to view our full selection of sprockets and chains. Sprockets Chains ...

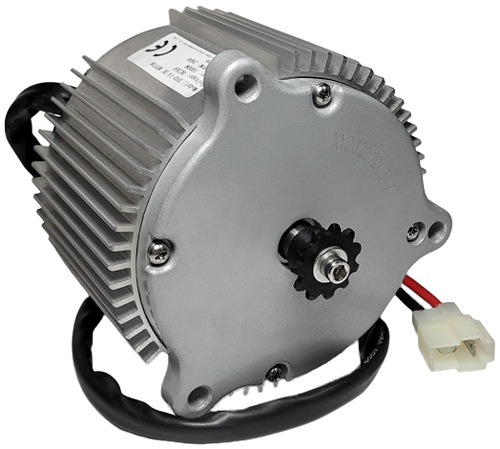

36 Volt 1000 Watt Electric Scooter Motor 36V 1000W 3000 RPM electric scooter motor. Powerful four brush permanent magnet design with 100% ball bearing construction. 15" long power leads. Shaft rotation reversible by reversing power leads. Includes factory installed 11 tooth sprocket for 8mm chain. Different size sprockets are available for this motor. Motor shaft starts at 12mm OD and is stepped down to 10mm OD with two flat spots that are 8.5mm apart where the sprocket mounts, past the...

36 Volt 1000 Watt Electric Scooter Motor 36V 1000W 3000 RPM electric scooter motor. Powerful four brush permanent magnet design with 100% ball bearing construction. 18" long power leads. Shaft rotation reversible by reversing power leads. Includes factory installed 11 tooth sprocket for 8mm chain.  Different size sprockets are available for this motor. Dimensions: 4-1/4" wide x 6" long excluding shaft, 7" long including shaft. Mounting bracket measures 4-3/4" x 2-7/8" and has 4 holes that...

Battery Jumper Wires = 5" LongBattery to Speed Controller Connector Wires = 24" long The motor in this kit has an 11 tooth sprocket for 8mm chain. We have wheel and axle sprockets for 8mm chain which are compatible with this kit. We also have sprockets for #25, #35, and #420 chain which fit the motor in this kit. Click below to view our full selection of sprockets and chains. Sprockets Chains ...

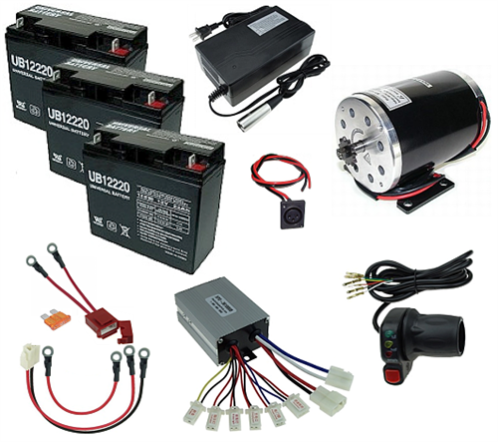

Wire Routing Chart The red button on the throttle is the On/Off power switch.The throttle has battery indicator lights which let you know how much capacity is left in the battery pack and also when the power is on or off. Select the wire lengths of the kit above. ...

Wire Routing Chart Select the wire lengths of the kit above. Click below to add motor, axle, or wheel sprockets to your order: View All Motor, Axle, and Wheel Sprockets ...

36V 1000 Watt Heavy-Duty Speed Controller Kit

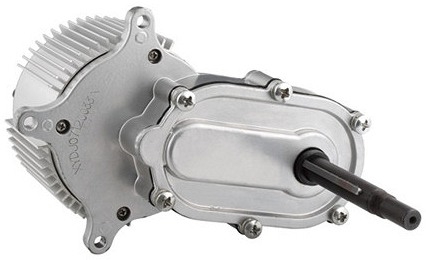

36 Volt 1000 Watt Motor with Gearbox and 15mm Axle for Schwinn Stealth, S1000, and ST-1000 Direct Drive Electric Scooters Fits the following makes and models: Schwinn Stealth with 15mm Axle Schwinn S1000 with 15mm Axle Schwinn ST-1000 with 15mm Axle Included wire and wire connector (not shown in photo). Compatible only with scooters that have a direct drive gearbox transmission. Dimensions PDF Important Information: For direct drive Schwinn scooters with 15mm rear wheel axle only. Does not...

36 Volt 1000 Watt Motor with Gearbox and Axle for eZip and IZIP 1000 Series Direct Drive Electric ScootersFits the following makes and models: eZip 1000 and E-1000 IZIP 1000 and I-1000 Schwinn Stealth 1000, S1000, and ST-1000 with 15mm Axle Included wire and wire connector (not shown in photo). Compatible only with 1000 series scooters that have a direct drive gearbox transmission. Dimensions PDF Important Information: For Schwinn 1000 series scooters with 15mm rear wheel axle only. Does not...

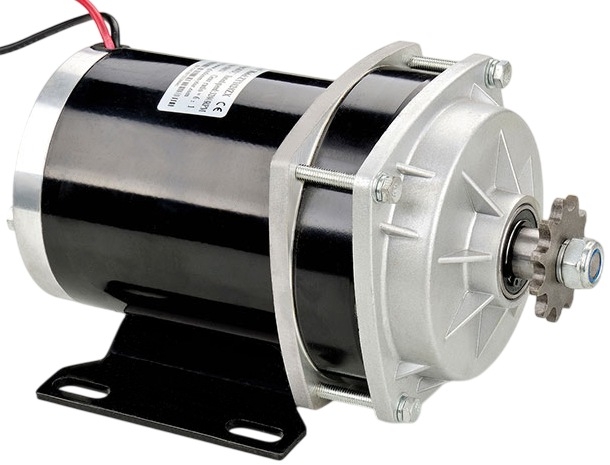

36 Volt 1000 Watt Planetary Gear Motor with Cooling Fan 36V 1000W electric bicycle, tricycle, and go-kart motor with built-in planetary gear reduction transmission and cooling fan. Motor speed 3000 RPM. Gear ratio: 6:1 Output shaft speed 500 RPM. Shaft diameter where sprocket seats into is 12mm x 17mm with a dual D-bore. Includes 11 tooth sprocket for #41 and #420 chain (both of these chain sizes work with this motor's sprocket). Powerful four brush permanent magnet design with 100% ball...

Wire Routing Chart Select the wire lengths of the kit above.

This kit requires modifications to install. The battery pack, controller, motor, and reverse switch need to be custom mounted. The axle sprocket and throttle will fit on the Dirt Quad without modifications. Geared for a top speed of around 15 MPH. With this kit the power switch is no longer wired in between the battery pack and controller, and there is an adapter (ADAPTER-CNX2.8M2-6.3F) that goes from the controller to the power switch This kit is available without a reverse switch as item #...

This is an NB (no batteries) series kit which requires a 36 Volt battery pack to use. This kit is also Available With Batteries. This kit requires modifications to install. The battery pack, controller, motor, and reverse switch need to be custom mounted. The axle sprocket and throttle will fit on the Dirt Quad without modifications. Geared for a top speed of around 15 MPH. With this kit the power switch is no longer wired in between the battery pack and controller, and there is an adapter...

This kit requires modifications to install. The battery pack, controller, and motor need to be custom mounted. The axle sprocket and throttle will fit on the Dirt Quad without modifications. Geared for a top speed of around 15 MPH. This kit is available with a reverse switch as item # KIT-191.

Toggle switch to controller wire length 48" Throttle to controller wire length 48" Battery pack to controller wire length 24" Charger port wire length 24" Motor to controller wire length 18" The toggle switch has 48" of wire so it can be mounted on the front of the Dune Buggy if wanted. This wire length can be shortened on request. The chain with master link in this kit is oversized and will need to be shortened to the correct length after the motor is installed. Two pieces of 1/4” threaded...

Toggle switch to controller wire length 48" Throttle to controller wire length 48" Battery pack to controller wire length 24" Charger port wire length 24" Motor to controller wire length 18" This is a modification parts kit and requires custom installation of all parts. This is a no batteries (NB) kit. We also have this kit available With Batteries. The toggle switch has 48" of wire so it can be mounted on the front of the Dune Buggy if wanted. This wire length can be shortened on request. The...

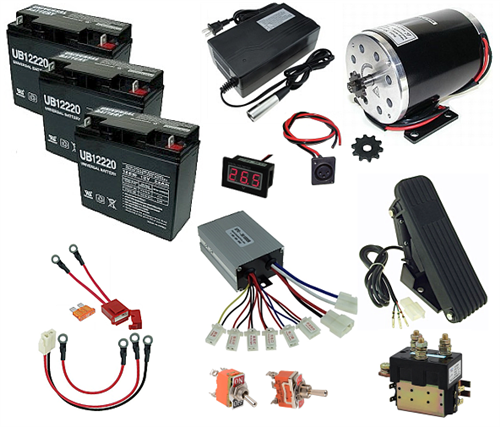

Toggle switches to controller/relay wire length 48" Throttle to controller wire length 48" Battery pack to controller wire length 24" Charger port wire length 24" Controller to reverse relay wire length 12" Motor to reverse relay wire length 18" This is a modification parts kit and requires custom installation of all parts. The toggle switches have 48" of wire so they can be mounted on the front of the Dune Buggy if wanted. These wire lengths can be shortened on request. The vehicle must be at...

Toggle switches to controller/relay wire length 48" Throttle to controller wire length 48" Battery pack to controller wire length 24" Charger port wire length 24" Controller to reverse relay wire length 12" Motor to reverse relay wire length 18" This is a modification parts kit and requires custom installation of all parts. This is a no batteries (NB) kit. We also have this kit available With Batteries. The toggle switches have 48" of wire so they can be mounted on the front of the Dune Buggy...

Throttle to controller wire length 60" Battery pack to controller wire length 18" Motor to controller wire length 18" Charger port wire length 20" The motor has an 11 tooth sprocket factory installed on it. An additional 13 tooth motor sprocket is included with this kit to increase the gear ratio and top speed. Two rear wheel sprockets are included with this kit. One wheel sprocket has 36 teeth and the other has 44 teeth. The power switch is on the throttle which makes turning the power on and...

Throttle to controller wire length 60"Battery pack to controller wire length 18"Motor to controller wire length 18"Charger port wire length 20" The power switch is on the throttle which makes turning the power on and off much easier than if using the original battery box mounted power switch. The throttle has battery indicator lights which light up when the power is on. The chain with master link in this kit is oversized and will need to be shortened to the correct length after the motor is...

Throttle to controller wire length 60" Battery pack to controller wire length 18" Motor to controller wire length 18" Charger port wire length 20" The motor has an 11 tooth sprocket factory installed on it. An additional 13 tooth motor sprocket is included with this kit to increase the gear ratio and top speed. Two rear wheel sprockets are included with this kit. One wheel sprocket has 36 teeth and the other has 44 teeth. The power switch is on the throttle which makes turning the power on and...

Throttle to controller wire length 60"Battery pack to controller wire length 18"Motor to controller wire length 18"Charger port wire length 20" The power switch is on the throttle which makes turning the power on and off much easier than if using the original battery box mounted power switch. The throttle has battery indicator lights which light up when the power is on. The chain with master link in this kit is oversized and will need to be shortened to the correct length after the motor is...

Toggle Switch to Controller wire length 48"Throttle to Controller wire length 48"Battery Pack to Controller wire length 24"Charger Port to Controller wire length 24"Motor to Controller wire length 18" The toggle switch has 48" of wire so it can be mounted on the front of the go kart if wanted. This wire length can be shortened on request. The chain with master link in this kit is oversized and will need to be shortened to the correct length after the motor is installed. This is a modification...

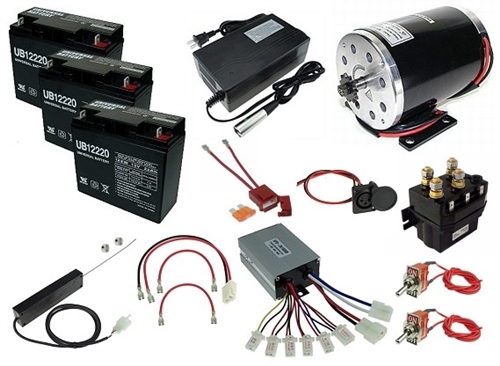

Toggle switches to controller wire length 59"Throttle to controller wire length 59"Voltmeter to controller wire length 59"Battery pack to controller wire length 24"Charger port wire length 20"Controller to reverse relay wire length 12"Motor to reverse relay wire length 18" The toggle switches and Voltmeter have 59" of wire so they can be mounted in the front of the Dune Buggy if wanted. This wire length can be changed on request. The chain with master link in this kit is oversized and will...

Toggle Switches to Controller wire length 48" Throttle to Controller wire length 48" Battery Pack to Controller wire length 24" Charger Port to Controller wire length 24" Controller to Reverse Relay wire length 12" Motor to Reverse Relay wire length 18" The toggle switches have 48" of wire so it can be mounted on the front of the go kart if wanted. This wire length can be shortened on request. The chain with master link in this kit is oversized and will need to be shortened to the correct...

Toggle Switches to Controller wire length 48"Throttle to Controller wire length 48"Battery Pack to Controller wire length 24"Charger Port to Controller wire length 24"Controller to Reverse Relay wire length 12"Motor to Reverse Relay wire length 18" The toggle switches have 48" of wire so it can be mounted on the front of the go kart if wanted. This wire length can be shortened on request. The master link in this kit is oversized and will need to be shortened to the correct length after the...

36 Volt 1000 Watt SPD-CT660B9 Controller and THR-68 Throttle Kit We install a connector on the throttle that plugs into the controller so everything is properly wired and works together.

36 Volt 1000 Watt SPD-CT660B9 Controller and THR-86 Throttle Kit We install a connector on the throttle that plugs into the controller so everything is properly wired and works together.

36V 1000W Electric Scooter and Bike Speed Controller Designed for 36 Volt motors up to 1000 Watts.Maximum current 32 Amps.Under Voltage protection 31 Volts.Current limiting feature helps prevent controller and motor damage due to over-current conditions. Under voltage protection feature prevents over-discharge of the battery pack and extends battery life.Uses standard 3-wire variable speed hall-effect throttle. Wiring Directions Plug-and-Play Compatible Throttles: THR-86-C1 36 Volt Half Twist...

36 Volt 1000 Watt Throttle, Controller, Battery Pack Wiring Harness, and Charger Port Kit All parts will have matching and labeled connectors on then for easy plug-and-play installation. Includes all necessary electrical parts except for the batteries, motor, and battery charger. The red push button switch on the throttle is the on/off power switch. The throttle has a battery level indicator which lights up when the power switch is on. ...
