Wire Routing
This kit is electronically 100% plug-and-play. We install matching connectors on every part of this kit and label them so all you have to do is plug everything together.
- The motor has an 11 tooth sprocket for 8mm chain factory installed onto it and a 10 tooth sprocket for #35 chain is included with this kit that fits directly onto the motor and can replace the sprocket for 8mm chain.
- Power off, power on forward, and power on reverse are activated by the three-position key switch.
- The reverse relays will be wired close to the controller so they can be mounted in the same area.
We have motor sprockets for #420 chain which fit the motor in this kit. We also have wheel and axle sprockets and axle adapters for 8mm (T8F), #35, and #420 chain which can be used with this kit.
Click below to view our full selection of sprockets and chains.
This kit contains the following parts and labor (click below for details):
This kit contains the following parts (click below for details):
|
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
|
Labor to install matching connectors on every part of this kit and label them so all you have to do is plug everything together.

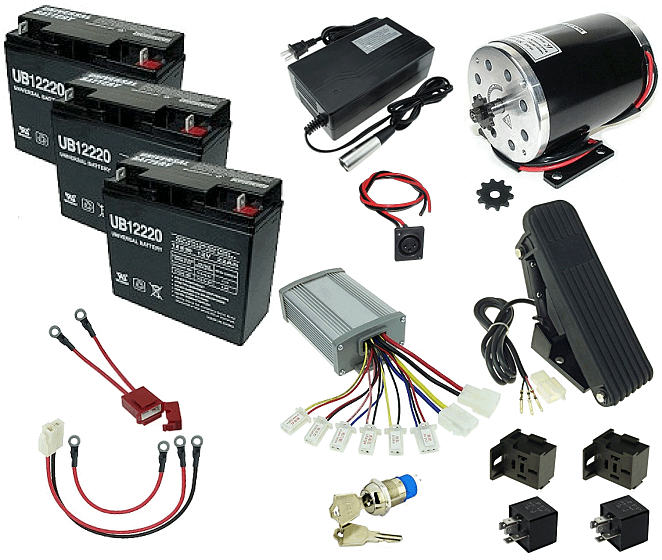

Three Quantity 12 Volt 22Ah Batteries with 12 Month Warranty
36 Volt 2.5 Amp Automatic Battery Charger with 3-Pin XLR Plug
3 Pin Black Nylon XLR Charger Port
36 Volt Battery Pack Wiring Harness with Fuse Holder and 40A Fuse, 5mm Ring Terminals
36 Volt 1000 Watt Electric Scooter Motor with Mounting Bracket
Bosch Type Relay Wiring Connector with Mounting Tab
36 Volt 80 Amp Bosch Type SPDT Relay
36 Volt 1000 Watt Speed Controller
10 Tooth Sprocket with 10mm x 8.5mm Double D-Bore for #35 Chain
3 Position Key Switch with 2 Keys
Premium Foot Pedal Throttle
|
$35.00,$179.85,$43.95,$3.95,$16.95,$129.95,$2.49,$5.95,$49.95,$9.95,$12.95,$34.95
The total of the individual parts and labor in this kit is
One or more of the parts in this kit is currently In StockIn StockIn StockIn StockIn StockIn StockIn StockIn StockIn StockIn StockIn StockIn Stock.
Notify Me When This Kit is Back in Stock
