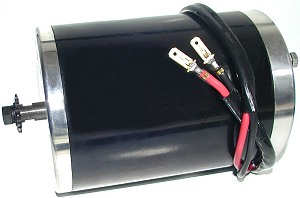

36 Volt 1000 Watt Electric Scooter Motor

Item #: MOT-361000
Availability: In Stock
Price: $129.95

    Quantity:
    36 Volt 1000 Watt Electric Scooter Motor

    • 36V 1000W 3000 RPM electric scooter motor.
    • Powerful four brush permanent magnet design with 100% ball bearing construction.
    • 15" long power leads.
    • Shaft rotation reversible by reversing power leads.
    • Includes factory installed 11 tooth sprocket for 8mm chain.
    • Different size sprockets are available for this motor.
    • Motor shaft starts at 12mm OD and is stepped down to 10mm OD with two flat spots that are 8.5mm apart where the sprocket mounts, past the sprocket is an 8mm left hand threaded post for the nut and washer which holds the sprocket in place.
    • Dimensions: 4-1/4" outside diameter x 6" long excluding shaft, 7" long including shaft.
    • Weight 10 lbs.
    • Made by Unite®.

    Motor Dimensions: PDF
