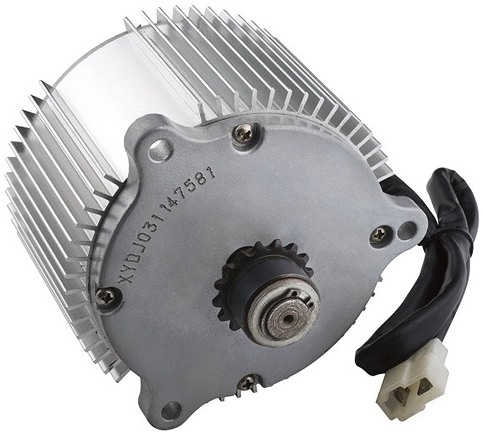

36 Volt 1000 Watt Currie Electric Scooter Motor with 15 Tooth Freewheel Sprocket
- Specifications: 36V (DC36V), 1000W, 2600 RPM (R/MIN), 32A, Front Mount
- Rated Current: 32A
- Model: XYD-14A (Use model plus specifications to determine compatibility.)
- Powerful four brush permanent magnet design with 100% ball bearing construction.
- Finned aluminum case.
- Made with extremely powerful and lightweight neodymium magnets.
- 15 tooth freewheel sprocket for #25 chain.
- 25" long power leads with connector at end.
- 3 bolt mounting bracket measures 3-7/8" center to center distance between holes.
- OEM Currie electric scooter motor.
- Dimensions: 4-1/2"(H) x 4-1/2"(W) x 5-1/2"(L) including shaft.
- Weight: 7.6 lbs
Compatibility:
- eZip E-1000, IZIP I-1000, Schwinn S1000, Schwinn Stealth ST1000. For chain drive scooters only, does not fit scooters with direct drive motors.
Motor Dimensions: PDF
