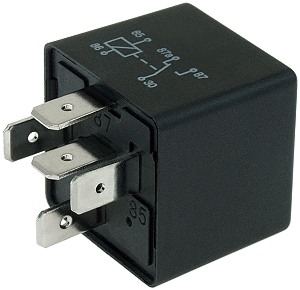

36 Volt 80 Amp Bosch Type SPDT Relay36 Volt DC Coil80 Amp ContactsSingle Pole Double Throw (SPDT)5 TerminalsRelay Dimensions: 1" x 1" x 1" Excluding TerminalsTerminal Dimensions: 1/4" (6.3mm) Wide x 3/8" (10mm) Long

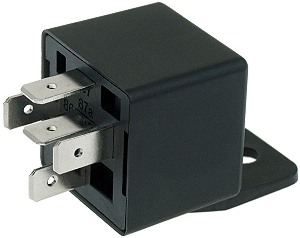

36 Volt 80 Amp Bosch Type SPDT Relay with Mounting Tab

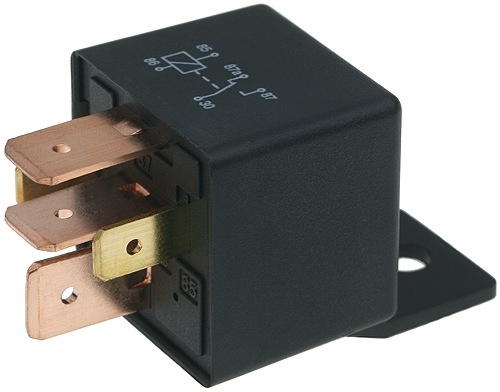

36 Volt 80 Amp SPDT Wide-Pin Relay

36 Volt 800 Watt Controller and Throttle with Key Switch and Battery Indicator Kit Suitable for 36 Volt motors between 750 to 1000 Watts.The only connections that need to be made with this kit are the thick yellow and blue wires to the motor, and the thick red and black wires to the battery pack. All other connectors are optional and do not need to be connected to anything for the controller to operate.The throttle has connectors that are wired to work with the controller. The controller and...

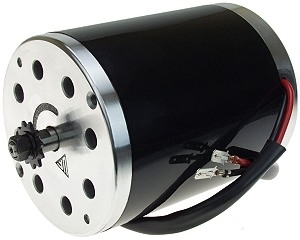

36 Volt 800 Watt Electric Scooter Motor 36V 800W 2750 RPM electric scooter motor. Rated Current: 29.2A Powerful four brush permanent magnet design with 100% ball bearing construction. Includes 11 tooth sprocket for #25 chain. 8.5mm x 10mm sprocket mounting area. Different size sprockets are available for this motor. 24" long power leads. Shaft rotation reversible by reversing power leads. Front and rear ends of motor have threaded mounting holes. Weight 9.4 lbs. Made by Unite. Cross references...

36 Volt 800 Watt Electric Scooter/Pocket Bike Motor 36V 800W 3000 RPM 28.5 Amp electric scooter/pocket bike motor. Powerful four brush permanent magnet design with 100% ball bearing construction. Includes 11 tooth sprocket for 8mm chain. 12 gauge power leads. The two thick red and black wires are for motor power. The two thin red and black wires go to a temperature sensor inside of the motor and are optional to use so they do not need to be connected to anything for the motor to operate. If...

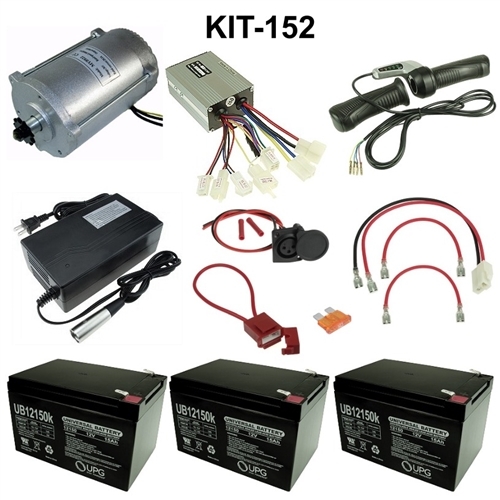

36 Volt 800 Watt Motor Pocket Bike Power Kit

36V 800W Electric Scooter and Bike Speed Controller Designed for 36 Volt motors between 750 and 1000 Watts.Maximum current 32 Amps.Under Voltage protection 31 Volts.Current limiting feature helps prevent controller and motor damage due to over-current conditions.Under voltage protection feature prevents over-discharge of the battery pack and extends battery life.Uses standard 3-wire variable speed hall-effect throttle Wiring Directions Plug-and-Play Compatible Throttles: THR-86-C1 36 Volt Half...

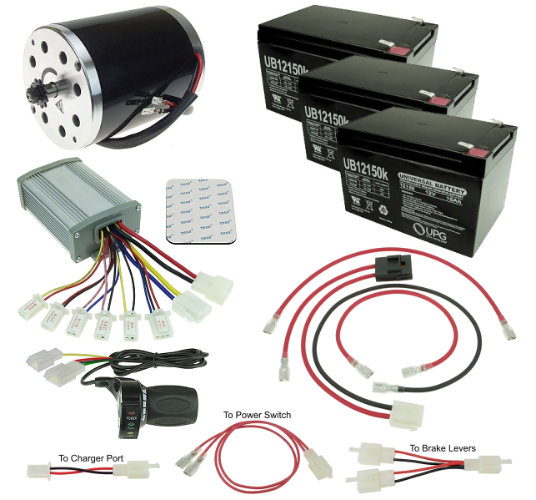

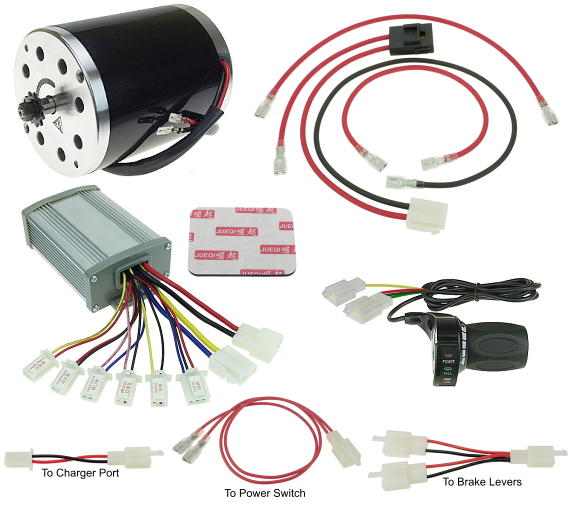

We install matching connectors on every part of this kit and label them so all you have to do is plug the parts together. This MX500, MX650 and SX500 upgrade kit is 100% plug-and-play and the motor and batteries install on the bike without any frame or body modifications. The 15Ah batteries in this kit have a higher capacity than the bike's original 12Ah batteries, however, the bike's original battery charger can be used to charge them so a new battery charger is not included with this kit....

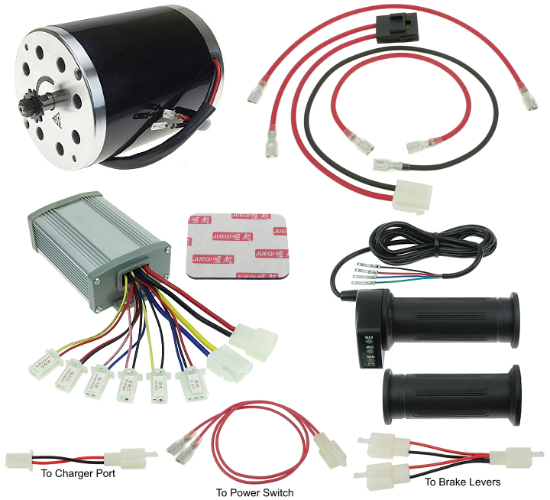

We install matching connectors on every part of this kit and label them, so all you have to do is plug the parts together. This MX500, MX650, and SX500 upgrade kit is 100% plug-and-play, and the motor is installed on the bike without any frame or body modifications. The speed controller's mounting holes are in different places from the original speed controller's mounting holes, so it needs to be custom mounted. This kit does not include batteries. ...

We install matching connectors on every part of this kit and label them so all you have to do is plug the parts together. This MX500, MX650, and SX500 modification kit is 100% plug-and-play, and the motor is installed on the bike without any frame or body modifications. The speed controller's mounting holes are in different places than the original speed controller's mounting holes so it needs to be custom mounted. This kit does not include batteries. ...

60 Volt Battery Pack Wiring Harness with Fuse Holder and Fuse 12" battery to connector wires.9" battery jumper wires. 5" fuse holder wires.5.2mm ID ring terminals.Fuse holder for ATO fuse.

36 Volt Battery Pack Wiring Harness with 6.3mm Ring Terminals6.3mm ID Ring Terminals

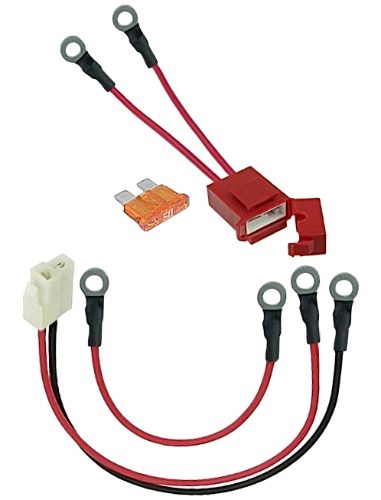

36 Volt battery Pack Wiring Harness with Fuse Holder and Fuse5mm ID Ring Terminals40 Amp Fuse

36 Volt Battery Pack Wiring Harness with Fuse Holder and Fuse6.3mm (1/4") ID Ring Terminals40 Amp Fuse

36 Volt battery Pack Wiring Harness with Fuse Holder and Fuse6.2mm (1/4") ID Ring Terminals40 Amp Fuse

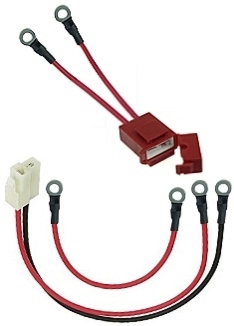

36 Volt Battery Pack Wiring Harness with Fuse Holder and Fuse12" battery to connector wires.9" battery jumper wire. 5" fuse holder wires.5mm ID ring terminals.Fuse holder for ATO fuse.

36 Volt Battery Pack Wiring Harness with Fuse Holder and Fuse 18" battery to connector wires.9" battery jumper wire. Two 5" fuse holder wires.5mm ID ring terminals.Fuse holder for ATO fuse.

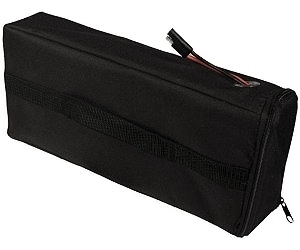

36 Volt Battery Pack with Case and Wiring Harness Compatible with the following makes and models: eZip E-1000 Electric ScooterGT GT-750 Electric ScooterIZIP I-750 Electric Scooter (36 Volt Version)IZIP I-1000 Electric ScooterMongoose M750 Electric ScooterSchwinn S600 Electric ScooterSchwinn S750 (36 Volt Version with Chain Drive)Schwinn S1000 / S-1000 Electric ScooterSchwinn Stealth ST1000 / ST-1000 Electric Scooter Related Parts Off-Scooter Battery Pack Charging Adapter for 3-Pin Charger...

36 Volt Battery Status, Power On, and Headlight On Indicator Handlebar mount 36 Volt battery status, power on, and headlight on indicator.Battery status indicator is calibrated for lead acid battery packs.Top; yellow light for 25% and three green lights for 50%, 75%, and 100% battery status. Bottom; red light for low battery warning, green light for power on, and yellow light for headlight on. 68" power cord. Red wire +36V power on, black wire ground, and white wire +36V headlight on. Fits...

36 Volt Battery Status, Power On, and Headlight On Indicator Handlebar mount 36 Volt battery status, power on, and headlight on indicator.Battery status indicator is calibrated for lithium battery packs.Top; yellow light for 25% and three green lights for 50%, 75%, and 100% battery status. Bottom; red light for low battery warning, green light for power on, and yellow light for headlight on. 68" power cord. Red wire +36V power on, black wire ground, and white wire +36V headlight on. Fits...

HRN-36, 36 Volt Electric Scooter Horn

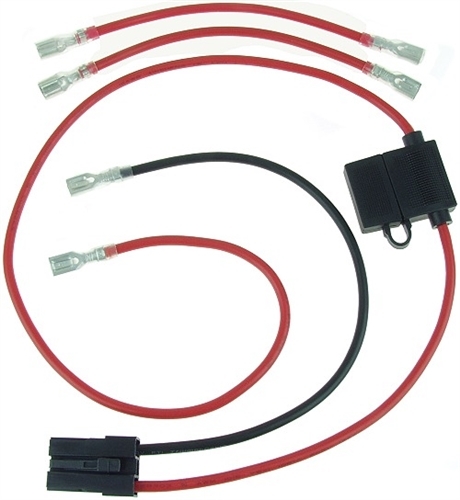

36 Volt EVO Electric Scooter Battery Harness with Push-On Tab Terminals Battery pack wiring harness with built-in fuse holder for 36 Volt EVO electric scooters. Push-on tab terminal battery connectors. Tab terminals are for use with 1/4" (6.3mm) wide battery tabs. Fuse holder is for ATO fuses. Includes two 6" battery jumper cables. ...

36 Volt EVO Electric Scooter Battery Harness with Ring Terminals

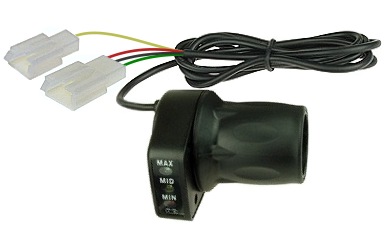

36 Volt Half Twist Throttle with Connectors Half twist throttle with 36 Volt battery indicator and connectors. Plug-and-play compatible with the following controllers: SPD-36500B Speed Controller SPD-36500R Speed Controller SPD-36800B Speed Controller SPD-361000B Speed Controller Matching Grip Set: GRP-54 Handlebar Grips for Half Length Twist Throttles ...

24 Volt Red LED Power Indicator Lamp (LIT-10)

36 Volt Throttle, Controller, Battery Pack Wiring Harness, and Charger Port Kit All parts will have matching and labeled connectors on then for easy plug-and-play installation. Includes all necessary electrical parts except for the batteries, motor, and battery charger. The throttle has a battery level indicator which lights up when the power switch is on.

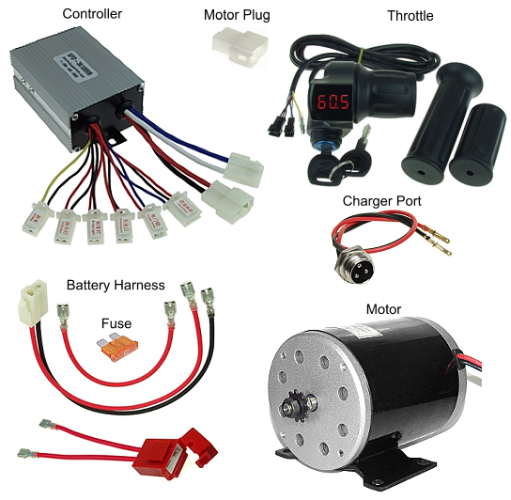

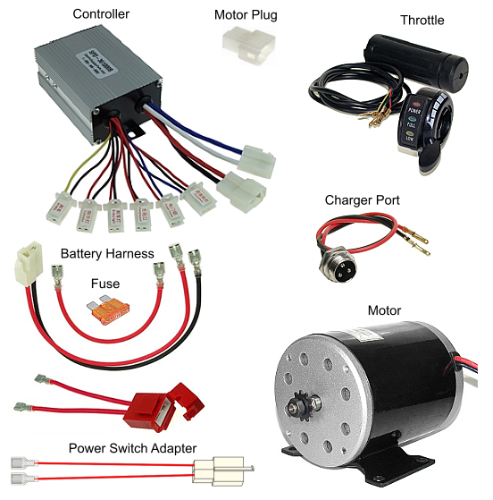

36 Volt Throttle, Controller, Motor, Battery Pack Wiring Harness, and Charger Port Kit All parts will have matching and labeled connectors on then for easy plug-and-play installation. Includes all necessary electrical parts except for the batteries, motor, and battery charger. The throttle has a battery level indicator which lights up when the power switch is on.

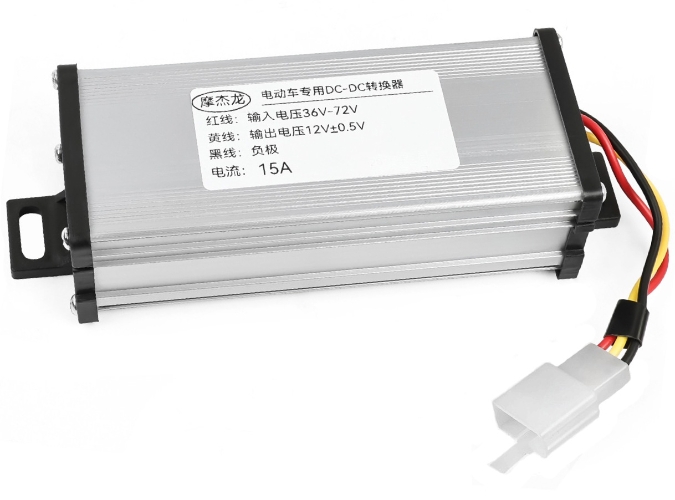

36-72 Volt DC to 12 Volt DC 15A DC-DC Voltage Converter Electric scooter, moped, and e-bike DC to DC converter. Converts 36V, 48V, 60V, or 72V DC down to 12 Volts DC. Maximum input Voltage 87V DC.Output Voltage 12V DC ±0.5V Maximum output current 15 Amps. Runs 12 Volt DC lights, horns, and accessories off of higher DC Voltages. Dimensions Case not including mounting tabs 4" long x 2.17" wide x 1.38" high Case including mounting tabs 5" long x 2.17" wide x 1.38" high Wire length 3.15" long...

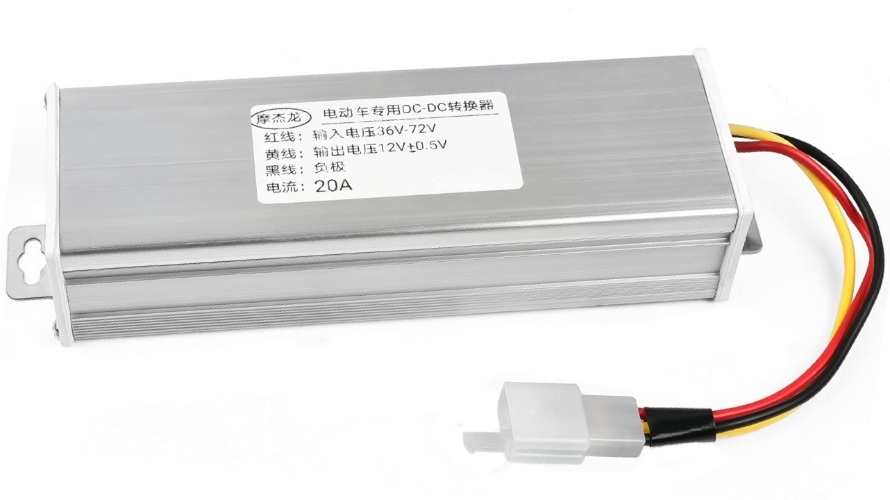

36-72 Volt DC to 12 Volt DC 20A DC-DC Voltage Converter Electric scooter, moped, and e-bike DC to DC converter. Converts 36V, 48V, 60V, or 72V DC down to 12 Volts DC. Maximum input Voltage 87V DC.Output Voltage 12V DC ±0.5V Maximum output current 20 Amps. Runs 12 Volt DC lights, horns, and accessories off of higher DC Voltages. Dimensions Case not including mounting tabs 4.75" long x 2.17" wide x 1.38" high Case including mounting tabs 6.1" long x 2.17" wide x 1.38" high Wire length 4.5" long...

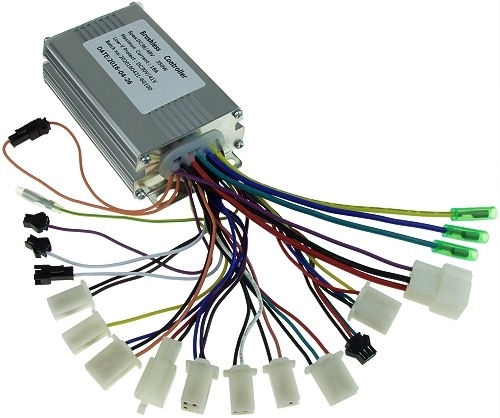

36/48 Volt 250-350 Watt Electric Scooter/Moped/Bike Brushless DC Motor Speed Controller (CW or CCW with Optional Reverse) Designed for 36V and 48V brushless DC motors between 250W and 350W. Replaces controllers with fewer connectors because most of the connectors are optional to use. Automatically selects under Voltage protection of 30 Volts ±0.5V with 36 Volt battery packs and 40 Volts ±0.5V with 48 Volt battery packs. Current limiting feature helps prevent controller damage due to...

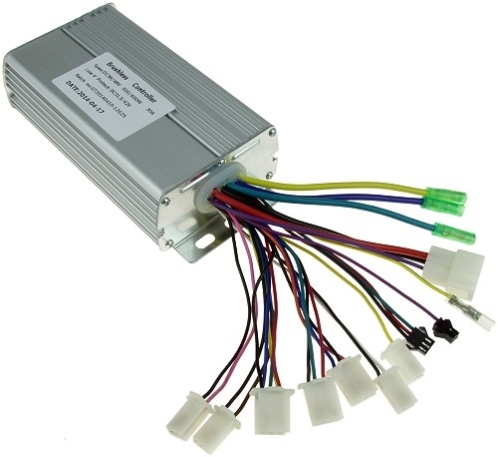

36/48 Volt 360-450 Watt Electric Scooter/Moped/Bike Brushless DC Motor Speed Controller (CW or CCW with Optional Reverse) Designed for 36V and 48V brushless DC motors between 360W and 450W. Replaces controllers with fewer connectors because most of the connectors are optional to use. Automatically selects under Voltage protection of 30 Volts with 36 Volt battery packs and 40 Volts with 48 Volt battery packs. Current limiting feature helps prevent controller and motor damage due to over-current...
