This controller has been upgraded to a 1500-2000 Watt version.
Click here for the new version of this controller.

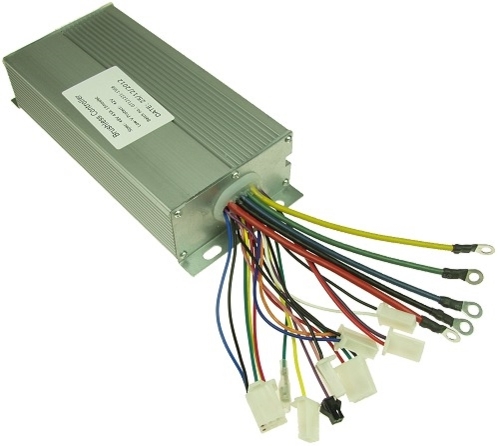

Designed for 48V through 72V brushless DC motors between 1500W and 1800W. Replaces controllers with fewer connectors because most of the connectors are optional to use.
- Operates from 41.5 through 84 Volts.
- Under Voltage protection 41.5 Volts.
- Current limiting feature helps prevent controller damage due to over-current conditions.
- Under voltage protection feature prevents over-discharge and extends battery life.
- Compatible with standard 3-wire variable speed hall-effect throttles.
- Dimensions: 8" L x 3-1/2" W x 1-3/4" T
- There is a top speed adjustable limiter for this controller which is item # THR-LIMITER25
- There is an adapter to connect a battery indicator to this controller which is item # PSW-ADAPTER1
- There is a jumper plug to put the 3-speed control onto high speed without installing a switch which is item # JMP-3F1T2
Wiring Directions
