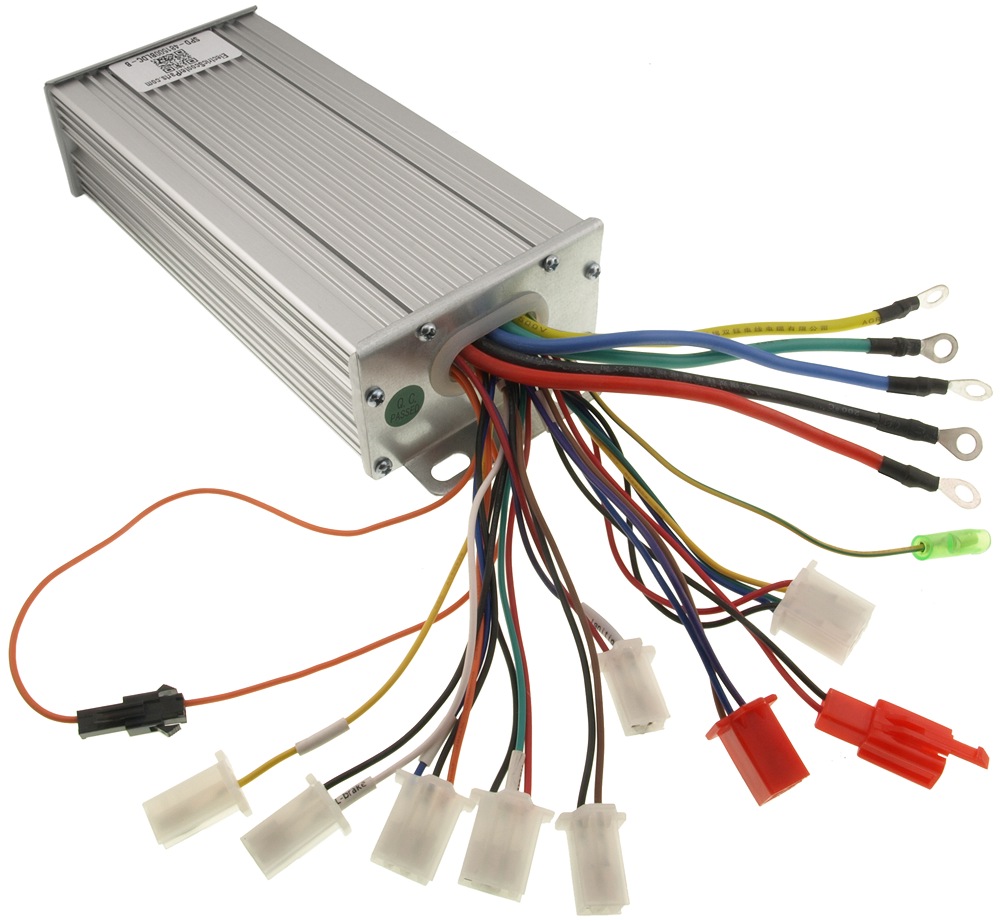

Designed for 48V through 72V brushless DC motors between 1500W and 2000W. Replaces controllers with fewer connectors because most of the connectors are optional to use.
- Operates from 41.5 through 84 Volts.
- Under Voltage protection 41.5 Volts.
- Current limiting feature helps prevent controller damage due to over-current conditions.
- Under voltage protection feature prevents over-discharge and extends battery life.
- Compatible with standard 3-wire variable speed hall-effect throttles.
- Dimensions: 8" L x 3-1/2" W x 1-3/4" T
- There is a top speed adjustable limiter for this controller which is item # THR-LIMITER25
- There is an adapter to connect a battery indicator to this controller which is item # PSW-ADAPTER1
- There is a jumper plug to put the 3-speed control onto high speed without installing a switch which is item # JMP-3F1T2
Wiring Directions
