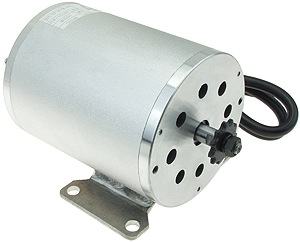

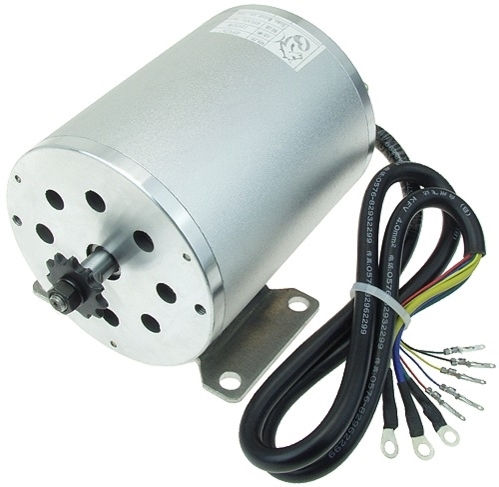

48 Volt 1800 Watt Brushless DC Motor with Mounting Bracket
- 48 Volt Brushless DC (BLDC) motor.
- 1800 Watts.
- 4500 RPM.
- 11-tooth sprocket for 8mm chain.
- Different size sprockets are available for this motor.
- 5.3" (135mm) motor case length.
- 4.2" (106mm) motor case width.
- 3.74" (95mm) center-to-center distance between internally threaded mounting holes.
- 0.66" (16.75mm) distance between front of motor case and center of sprocket teeth.
- Mounting Bracket measures 4-5/8" x 2-7/8". Mounting holes are 100mm and 55mm from center to center.
- Weight 10 lbs.
- Dimensions: PDF
Compatible Controllers:
- SPD-482000BLDC-B forward and reverse controller for sealed lead-acid and LiFePO4 batteries.
- SPD-481800BLDC unidirectional controller for Li-ion and LiFePO4 battery.
- SPD-481800BLDC-SL unidirectional controller for sealed lead-acid battery.
