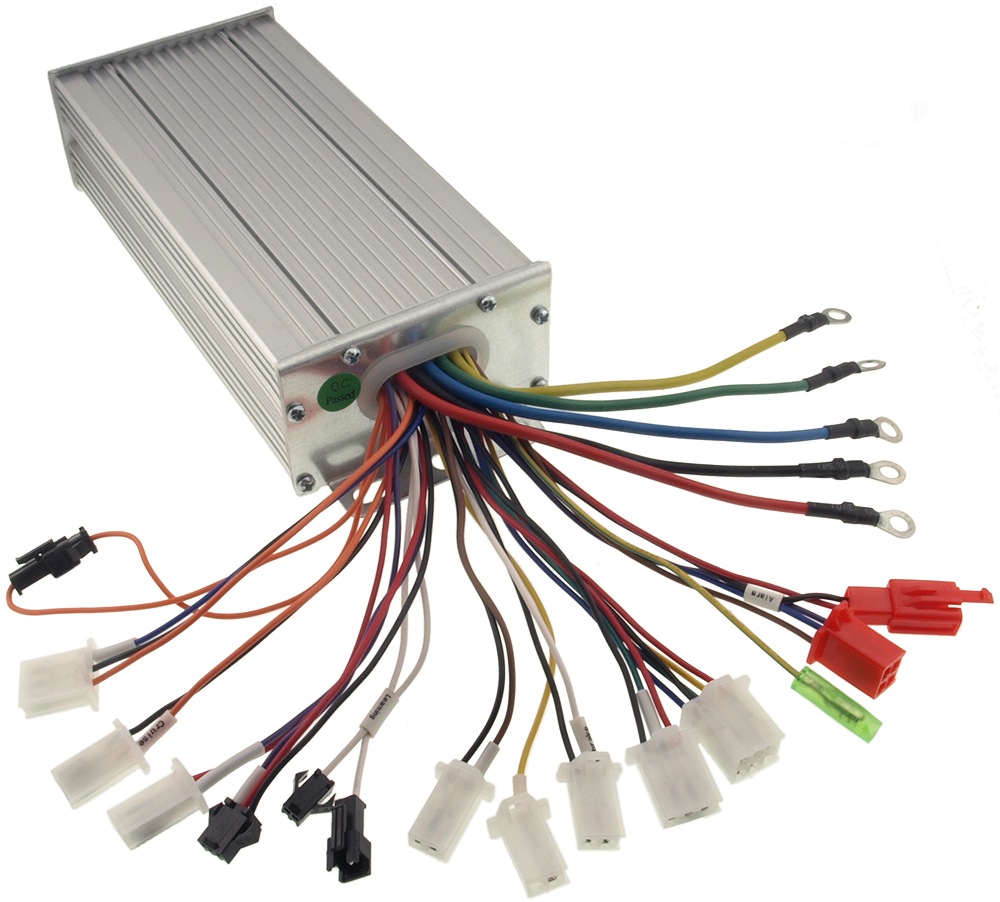

Designed for 48V through 72V brushless DC motors between 1500W and 2000W. Replaces controllers with fewer connectors because most of the connectors are optional to use.
- Operates from 40 through 84 Volts.
- Under Voltage protection 40 ± 0.5 Volts.
- For sensored brushless DC motors only. Does not work with sensorless brushless DC motor.
- Current limiting feature helps prevent controller damage due to over-current conditions.
- Under voltage protection feature prevents over-discharge and extends battery life.
- Compatible with standard 3-wire variable speed hall-effect throttles.
- There is a top speed adjustable limiter for this controller which is item # THR-LIMITER25
- There is an adapter to connect a battery indicator to this controller which is item # PSW-ADAPTER1
- There is a jumper plug to put the 3-speed control onto high speed without installing a switch which is item # JMP-3F1T2
Wiring Directions
