- Toggle switch to controller wire length 48"
- Throttle to controller wire length 48"
- Battery pack to controller wire length 24"
- Charger port wire length 24"
- Motor to controller wire length 18"
The toggle switch has 48" of wire so it can be mounted on the front of the Dune Buggy if wanted. This wire length can be shortened on request.
The chain with master link in this kit is oversized and will need to be shortened to the correct length after the motor is installed.
Two pieces of 1/4” threaded rod that are bent into a U shape can be used to install the motor without needing to modify the frame’s motor mount. 1/4” ID vinyl tubing can be placed over the threaded rod to help it grip the motor better and prevent scratching it.
A different version of this kit can be special ordered with a motor that has a mounting base if you prefer to modify the frame's motor mount or make a motor mount adapter instead of using threaded rod.
This is a modification parts kit and requires custom installation of all parts.
This kit goes forward only. We also have this kit available With Reverse.
This kit contains the following parts and labor (click below for details):
This kit contains the following parts and labor (click below for details):
This kit contains the following parts (click below for details):
|
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
|
Labor to install matching connectors on every part of this kit and label them so all you have to do is plug everything together.

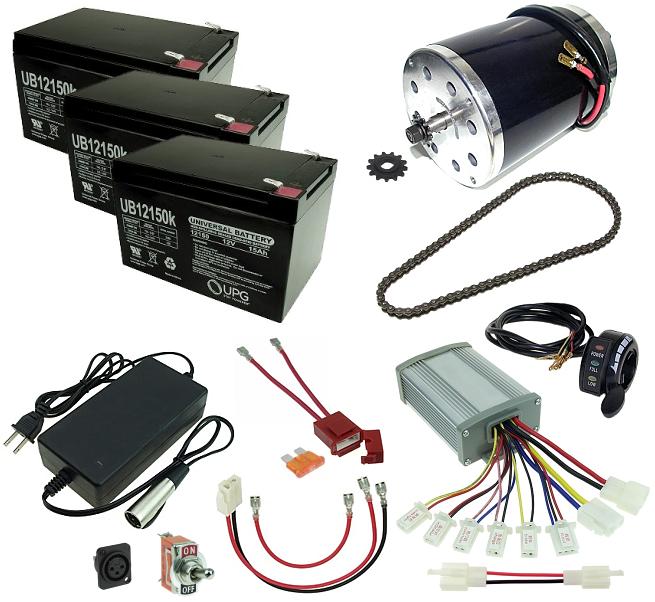

Three Quantity 12 Volt 15 Ah Batteries with 12 Month Warranty
80 Links of Heavy Duty #25 Chain with Master Link
36 Volt 1.6 Amp Automatic Battery Charger with 3-Pin XLR Plug
3 Pin Black Nylon XLR Charger Port
40 Amp ATO Blade Fuse
36 Volt 1000 Watt Electric Scooter Motor
Adapter To Make Razor Brake Lever Work with Aftermarket Speed Controller
36 Volt 1000 Watt Speed Controller
13 Tooth 10mm Double D-Bore Sprocket for #25 Chain
On-Off Toggle Switch, SPST 2-Terminal
Thumb Throttle with 36 Volt Power Meter
Wiring Harness with Fuse Holder for 36 Volt Battery Pack
|
$35.00,$134.85,$14.40,$32.95,$3.95,$0.95,$129.95,$5.95,$49.95,$9.95,$2.95,$19.95,$11.95
The total of the individual parts and labor in this kit is
One or more of the parts in this kit is currently In StockIn StockIn StockIn StockIn StockIn StockIn StockIn StockIn StockIn StockIn StockIn StockIn Stock.
Notify Me When This Kit is Back in Stock
