TranzX E-Bike Parts

Search for The Part You Need

Crankset for IZIP Vibe+, Raleigh Sprite, and All TranzX M16 E-Bikes Lasco EB05 forged alloy crank arms.Dual tone black finish. 42 Tooth (42T) chainring for 3/32" chain with chain guards. 175mm cranks with square hole. 9/16" pedal spindle. Outer guard GA8. Inner guard GS0. Spider M07-006. Compatibility: IZIP Vibe+ (2019) Raleigh Sprite (2019) All TranzX M16 E-Bikes ...

Crankset for Raleigh Retroglide 170mm cranks with square hole.For TranzX M16 motor.With 42 tooth chainring.No guards. Silver color.Part Number: AB0024B002827 Compatibility: Raleigh Retroglide (2019)

Crankset for Raleigh Sprint iE Electric Bicycle 170mm cranks with square hole.For TranzX M25 motor.Part Number: 99-45-0099 Compatibility: Raleigh Sprint iE (2016, 2017, 2018)

Derailleur Hanger for Diamondback: Overdrive | IZIP: Peak | Raleigh: Lindau, Retroglide, Sprite Part Number: 99-45-0050Alternative part Number: 99-45-0049 Compatibility: Diamondback Overdrive (2015, 2016)IZIP Peak (2014, 2015)Raleigh Lindau (2018, 2019)Raleigh RetroglideRaleigh Sprite

Derailleur Hanger for ZIP Peak Electric Bike Part Number: HW-DHG-009 Compatibility: IZIP Peak (2014)

Derailleur Hanger for ZIP Sumo Electric Bike Part Number: HW-DHG-015 Compatibility: IZIP Sumo (2015)

Derailleur Hanger for Raleigh Tekoa Electric Bike Part Number: HW-DHG-016 Compatibility: Raleigh Tekoa (2015)

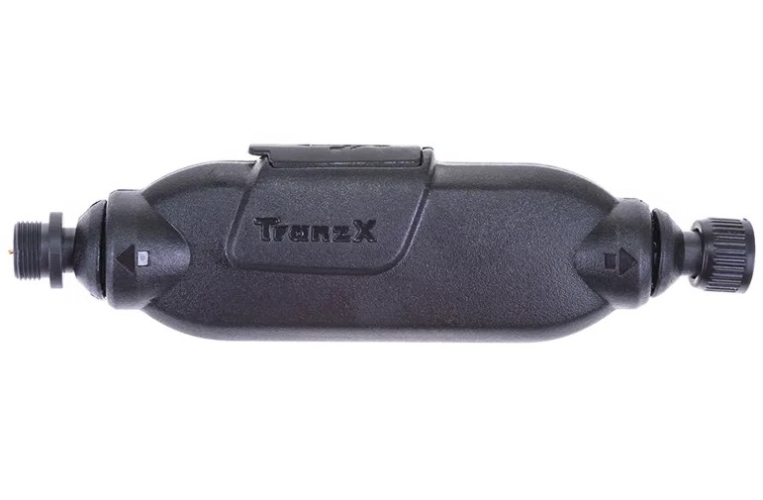

Diagnostic Tool, TranzX, MY16-19, Canbus, AA504012036 USB Link Diagnostic Tool Does Not Include USB Cable Alternate For JD Canbus ToolClick here for USB cable. Compatibility TranzX eBikes (2016, 2017, 2018, 2019)

Display Cable for Diamondback Lindau, IZIP Path+, Raleigh Detour and Venture Part Number: WR-PATH+-001 Compatibility: Diamondback Lindau (2015, 2016)IZIP Path+ (2014, 2015)Raleigh Detour (2015)Raleigh Venture (2015)

Display Cable for Diamondback Overdrive | IZIP Dash, Peak DS, and Sumo | Raleigh Tekoa | Yuba Spicy Curry Display cable, M07, for Flat3 throttle.Part Number: WR-PEAK-002 Compatibility: Diamondback Overdrive (2016)IZIP Dash (2016)IZIP Peak DS (2016)IZIP Sumo (2015)Raleigh Tekoa (2015)Yuba Spicy Curry (2015)

Wheel Speed Sensor for Diamondback Overdrive | IZIP Dash, Peak, and Peak DS | Raleigh: Route, Tekoa | All TranzX M07 E-Bikes Except Fat Tire ModelsWheel Speed Sensor, TranzX, M07 (Except for SUMO)Part Number: SN-SPEED-001 Compatibility: Diamondback Overdrive (2015, 2016)IZIP Dash (2016)IZIP Peak (2015, 2016)IZIP Peak DS (2016)Raleigh Route (2016)Raleigh Tekoa (2016) ...

Display Cable Set for Diamondback Lindau Part Number: 99-45-0054 Compatibility: Diamondback Lindau (2015, 2016)

Display Cable Set for IZIP Loma Display cable wire set.Part Number: 165469 Compatibility: ZIP Loma (2019)

Display Wiring Harness with Boost Button Connector for: IZIP: Dash, Peak, and Sumo | Raleigh: Route | Yuba: Spicy Curry Part Number: 99-45-0039Alternative Part Number: 163797 Compatibility: IZIP Dash (2016)IZIP Peak (2016)IZIP Sumo (2016)Raleigh Route (2016)Yuba Spicy Curry (2016)

Fork for 2019 IZIP Vibe+ Black rigid alloy fork with 1-1/8" steerer.Uncut steerer. Without v-brake pivot attachment.With IS disc brake mount.Threadless front bicycle fork.Part Number: 165469 Compatibility: ZIP Vibe+ (2019)

Frame Mount Battery Tray with Lock and Keys for Diamondback: Trace | IZIP: Dash, Peak, Peak DS, Sumo | Raleigh: Tekoa | Yuba Spicy Curry | All TranzX BL17 E-Bikes The lock uses T82 Abus keys.Part Number: BA-BL17-100 Compatibility: Diamondback Trace (2015, 2016)IZIP Dash (2014, 2015, 2016)IZIP Peak (2015, 2016, 2017)IZIP Peak DS (2016)IZIP Sumo (2015, 2016)Raleigh Tekoa (2015, 2016)Yuba Spicy Curry (2015, 2016)All TranzX BL17 E-Bikes ...

Front Light Wire for IZIP: Edge, Vibe+, and Zuma | Raleigh: Retroglide and Sprite Front headlight cable. Compatibility IZIP Edge (2019)IZIP Vibe+ (2019)IZIP Zuma (2019)Raleigh Retroglide (2019)Raleigh Sprite (2019)

JD Rack Battery Replacement Lock for Electric Bicycle JD Rack Battery Replacement Lock Core with Tray Tab plus 2 Keys. For RTMB battery system. M16, M19, R15-48 motors. Compatibility: Diamondback Lindau (2015, 2016)IZIP E3 Go (2017, 2018)IZIP Path+ (2014, 2015)IZIP Vibe+ (2016, 2017, 2018)Raleigh Detour (2015)Raleigh Retroglide (2017)Raleigh Sprite (2016, 2017, 2018)Raleigh Superbe (2017, 2018)Raleigh Venture (2015)TransX 48V RTMB Bikes (2014, 2015, 2016, 2017, 2018) ...

Junction Box Cable Organizer for Diamondback Trace Part Number: HW-JCTN709-001 Compatibility: Diamondback Trace (2015)

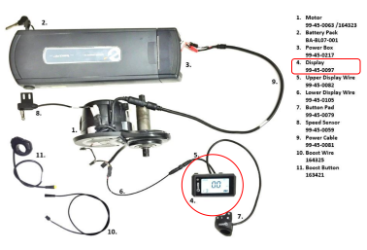

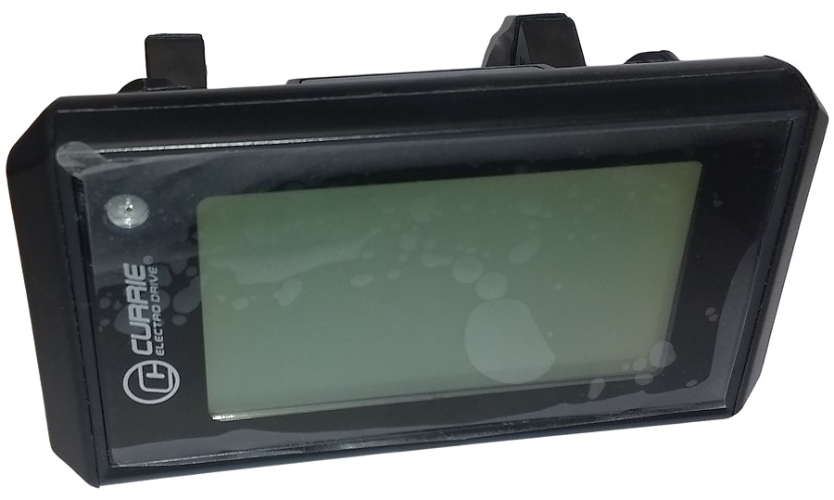

LCD Display for IZIP E3 Go and Vibe+, and Raleigh Tristar and Sprite LCD Display with two handlebar mounting brackets for 22.2mm handlebars.Part Number: 99-45-0097Alternative Part Number: 99-45-0078For TranzX Motor: M16JD display Canbus 3H. Compatibility: IZIP E3 Go (2017, 2018)IZIP Vibe+ / Vibe Plus (2016)Raleigh Tristar (2017, 2018)Raleigh Sprite (2016)

TranzX LCD Display for IZIP Dash and Protour, and Raleigh Cadent and Sprint TranzX LCD Display with two handlebar mounting brackets for 31.8mm handlebars.Part Number: 99-45-0066Alternative Part Number: ABD180C001244, DP18 CH R1 For TranzX Motors: M16 and M25JD display Canbus 3H DP18. Compatibility: IZIP Dash (2017, 2018, 2019)IZIP Protour (2016)Raleigh Cadent (2018, 2019)Raleigh Sprint (2016) ...

Lighting Cable Set for 2016 IZIP Peak and Sumo Part Number: 99-45-0043 Compatibility IZIP Peak (2016)IZIP Sumo (2016)

Lock Core with Two Keys for IZIP E3 Loma Original IZIP Lock Core with Two KeysPart Number: AB2411B002297 Compatibility IZIP E3 Loma Electric Bike (2019)

Lower Display Cable for Haibike SD Urban+, IZIP Protour, and Raleigh Sprint Electric Bikes Display to motor cable for TranzX M25 motor.Part Number: 99-45-0101 Compatibility: Haibike SD Urban+ (2017, 2018)Raleigh Protour (2016, 2017, 2018)Raleigh Sprint (2016)

Lower Display Wire for: IZIP: E3 Dash, E3 Go, Edge, Loma, Vibe+, Zuma ; Raleigh: Cadent, Retroglide, Sprite, Tristar This is the cable that goes between the display and the motor. Compatibility: IZIP E3 Dash (2017, 2018, 2019)IZIP E3 Go (2017, 2018)IZIP Edge (2019)IZIP Vibe+ (2016, 2017, 2018, 2019)IZIP Zuma (2018, 2019)Raleigh Cadent (2018, 2019)Raleigh Retroglide (2017, 2018, 2019)Raleigh Sprite (2016, 2017, 2018, 2019)Raleigh Tristar (2017, 2018) ...

Motor Core for IZIP Dash and Diamondback Trace Motor Core, TranzX M19, 28mph/45kph.Part Number: 99-45-0218 Compatibility: IZIP Dash (2014, 2015)Diamondback Trace (2015, 2016)

Motor Core for IZIP E3 Loma TranzX R15 36V 350W motor core (stator) with hub cover.Part Number: 165562 Compatibility: IZIP E3 Loma

Motor for Diamondback Overdrive | IZIP: E3 Dash, Peak, and Peak DS | Raleigh: Route and Tekoa | Yuba Spicy Curry TranzX M07 electric bicycle motor.48V 350W Mid-Drive (mounts in the center of the bike frame). Compatibility:Diamondback Overdrive (2015, 2016)IZIP E3 Dash (2016)IZIP Peak (2015, 2016)IZIP Peak DS (2016)Raleigh Route (2016)Raleigh Tekoa (2015, 2016)Yuba Spicy Curry (2015, 2016) ...

Motor for IZIP Sumo TranzX M07 electric bicycle motor.48V 350W Mid-Drive (mounts in the center of the bike frame). Compatibility: IZIP Sumo (2015, 2016)

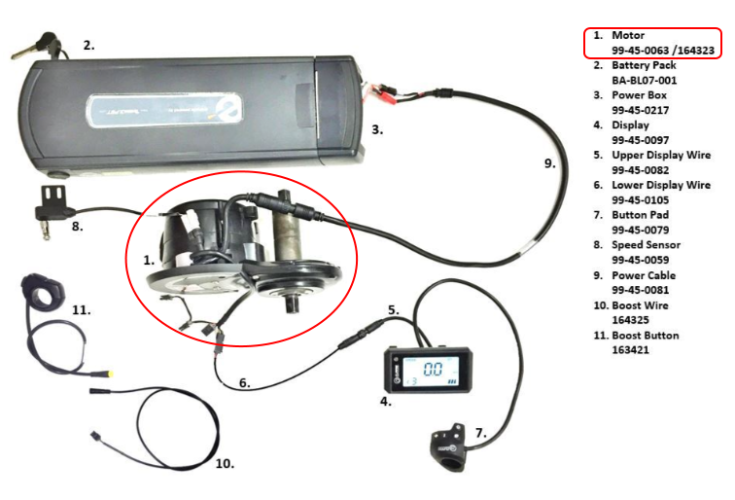

Motor for: IZIP: E3 Dash, E3 Go, Edge, Vibe+, Zuma ; Raleigh: Cadent, Retroglide, Sprite, Tristar ; TranzX BL16 E-Bikes TranzX M16 motor.48V 350W Mid drive (mounts in the center of the bike frame). Compatibility: IZIP E3 Dash (2017, 2018, 2019)IZIP Edge (2019)IZIP Vibe+ (2016, 2017, 2018, 2019)IZIP Zuma (2018, 2019)Raleigh Cadent (2018, 2019)Raleigh Retroglide (2017, 2018, 2019)Raleigh Sprite (2016, 2017, 2018, 2019)Raleigh Tristar (2017, 2018)All TranzX BL16 Bikes ...

Pedal Sensor for IZIP E3 Loma Pedal Sensor for IZIP E3 Loma e-bike.12 magnet pedal RPM sensor.Part Number: 165554 Compatibility: IZIP E3 Loma

Power Cable for: IZIP e3 Go and Vibe+ ; Raleigh Retroglide, Sprite, and Tristar This is the power cable that goes between the battery and motor.SKU: 99-45-0081 Compatibility: IZIP E3 Go (2017, 2018)IZIP Vibe+ (2016, 2017, 2018)Raleigh Retroglide (2017)Raleigh Sprite (2016, 2017)Raleigh Tristar (2017, 2018)
