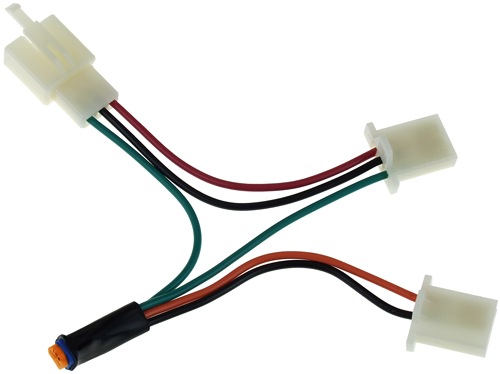

Throttle Top Speed Adjustable Limiter with High/Low Speed Switch Connector
- Use a small screwdriver to adjust the top speed of a throttle.
- Top speed can be adjusted from around 5-100% and anywhere in between.
- The connector with orange and black wires can go to a high/low speed selector switch to select between full speed and adjustable low speed. This is an optional connection and the adjuster will work without a switch connected to it.
- Easy to install - simply plug this speed limiter in between the throttle and controller.
- The limiter's red and black wires need to match up to the red and black wires of the throttle and controller.
- The throttle's signal wire which is commonly green or white needs to go through the green wire of the limiter.
Compatibility:
- Compatible with most speed controllers.
Wiring Directions
