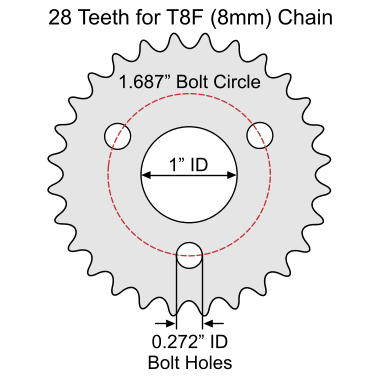

28 Tooth Sprocket for T8F (8mm) Chain with G2 Mounting Pattern Made from Tempered (Hardened) Aircraft Grade Aluminum Alloy G2 Sprocket Mounting Pattern 28 Tooth Steel Sprocket for T8F (8mm) Chain 1" ID 1.687" Bolt Circle Diameter Three 0.272" ID Bolt Holes Equally Spaced @ 120 Degrees 1.455" Adjacent Bolt Hole Center to Center Spacing We have a Axle Hubs and Mounting Hardware available for this sprocket. ...

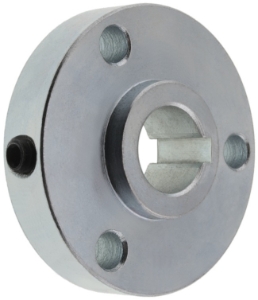

Sprocket Hub for 5/8" Axles Compatible with our Group 2 (G2) sprockets.Made from zinc plated steel.2-1/8" outside diameter.5/8" ID bore. 3/16" keyway. Three 1/4" ID sprocket mounting holes with 1.687" bolt circle diameter (BCD). Sprocket mounting holes are not threaded and work with 1/4" nuts and bolts. Setscrew is on opposite side of keyway.Includes one setscrew.

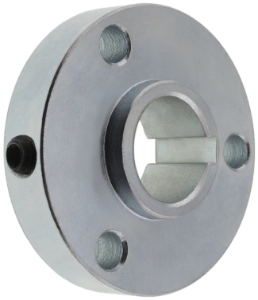

Sprocket Hub for 3/4" Axles Compatible with our Group 2 (G2) sprockets.Made from zinc plated steel.2-1/8" outside diameter.3/4" ID bore. 3/16" keyway. Three 1/4" ID sprocket mounting holes with 1.687" bolt circle diameter (BCD). Sprocket mounting holes are not threaded and work with 1/4" nuts and bolts. Setscrew is on opposite side of keyway.Includes one setscrew.

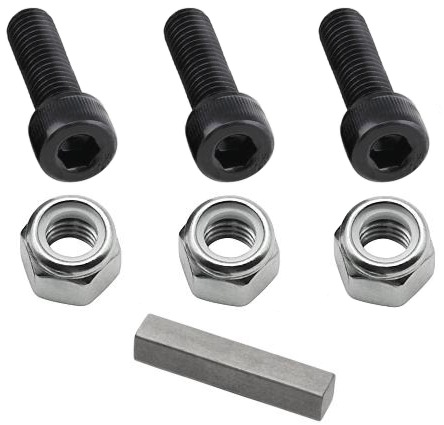

Hardware Kit for G2 Sprocket Hubs Three 1/4" OD x 1-1/4" long socket head bolts with lock nuts. One 3/16" x 3/16" x 3/4" key pin. Compatible with axle hubs item # HUB-201058 and HUB-201034. -->
