Search Results for "f8 mounting"

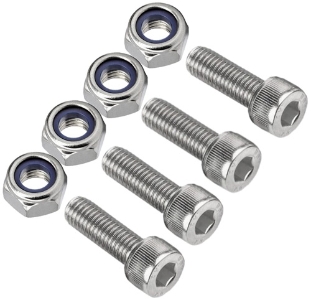

Sprocket to Freewheel Nut and Bolt Set for F8 Mounting Pattern Set of four M8x24mm 8mm bolts and four M8 8mm nylock nuts. Compatible with FWM-164 Rear Axle or Wheel Freewheel Clutch and sprockets with F8 Sprocket Mounting Pattern

Rear Axle or Wheel Freewheel Clutch with F8 Mounting Pattern F8 Sprocket Mounting PatternMost commonly used on heavy-duty electric tricycles.M35x1.0 clockwise (right hand) threads.Four 8.5mm ID bolt holes.80mm bolt circle diameter (BCD).56.5mm center-to-center distance between adjacent bolt holes.Overall outside diameter 95mm.Overall thickness 15mm. We have a Sprocket to Freewheel Nut and Bolt Set available for this freewheel. ...

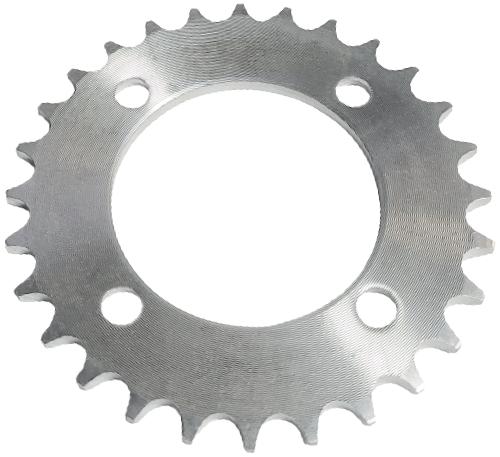

28 Tooth Sprocket for #41 and #420 Chain with F8 Mounting Pattern F8 Sprocket Mounting Pattern 28 Tooth Steel Sprocket for #41 and #420 Chain 64.5mm ID 80mm Bolt Circle Diameter 56.5mm Adjacent Bolt Hole Center to Center Spacing Four 8.5mm ID Bolt Holes We have a Sprocket to Freewheel Nut and Bolt Set available for this sprocket. ...

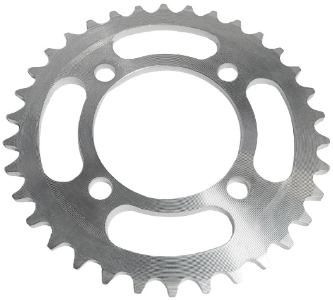

34 Tooth Sprocket for #41 and #420 Chain with F8 Mounting Pattern F8 Sprocket Mounting Pattern 34 Tooth Steel Sprocket for #41 and #420 Chain 64.5mm ID 80mm Bolt Circle Diameter 56.5mm Adjacent Bolt Hole Center to Center Spacing Four 8.5mm ID Bolt Holes We have a Sprocket to Freewheel Nut and Bolt Set available for this sprocket. ...

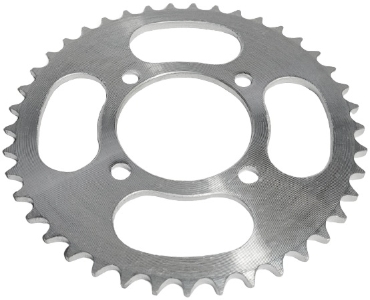

41 Tooth Sprocket for #41 and #420 Chain with F8 Mounting Pattern F8 Sprocket Mounting Pattern 41 Tooth Steel Sprocket for #41 and #420 Chain 64.5mm ID 80mm Bolt Circle Diameter 56.5mm Adjacent Bolt Hole Center to Center Spacing Four 8.5mm ID Bolt Holes We have a Sprocket to Freewheel Nut and Bolt Set available for this sprocket. ...
