Small Plastic Foot Throttle

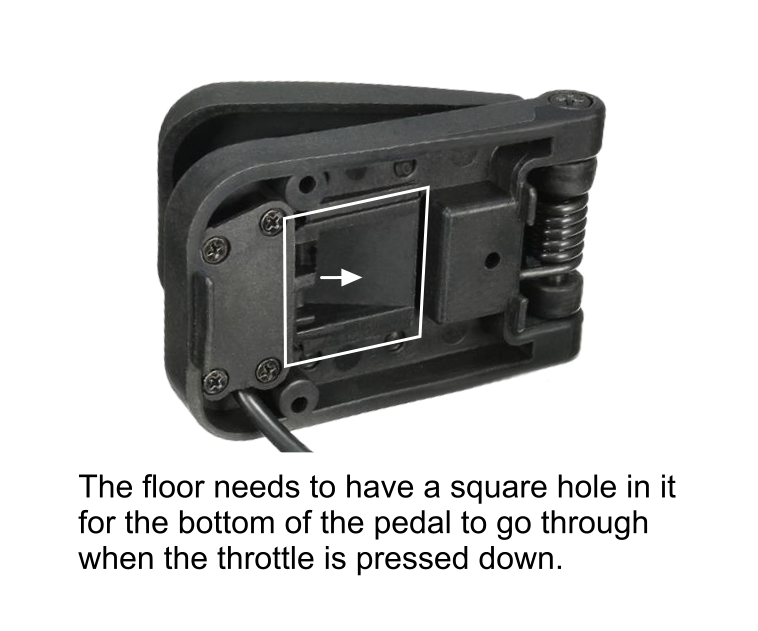

- In order to make a foot throttle this small they had to make part of it protrude under the floor when the throttle is pressed down so a small square hole needs to be cut in the floor underneath part of the throttle.
- Cable Length: 59" (1500mm)
- Wire Colors: Red, Black, Green
- Wire Terminals: 2.8mm Male Terminals

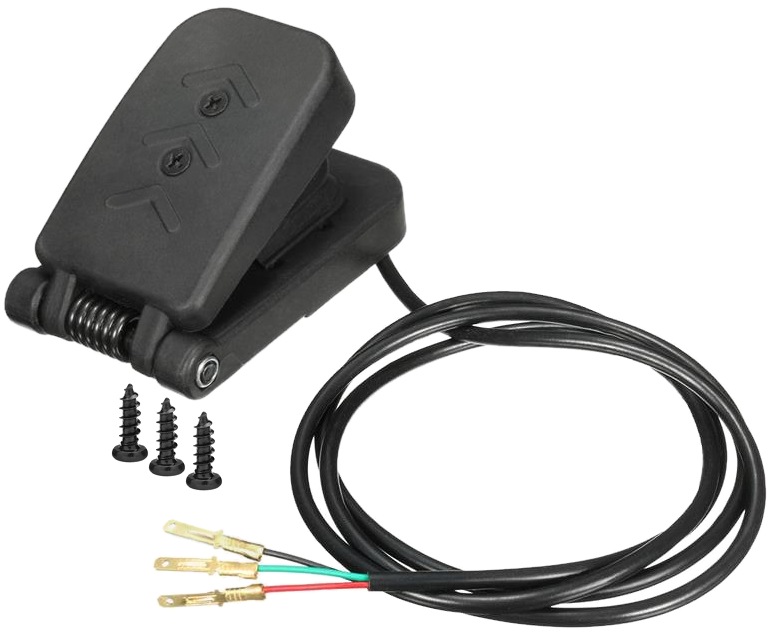

- Mounts to the floor with three screws (included).

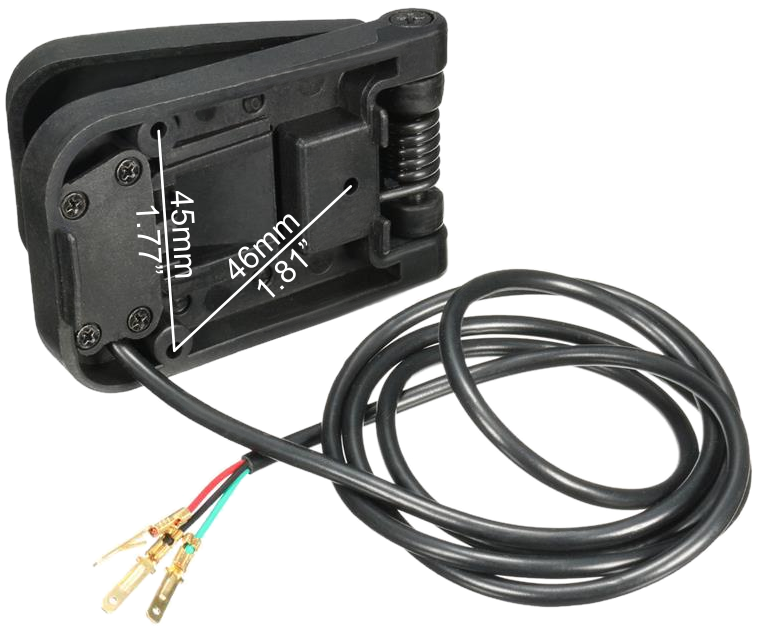

- Side To Side Mounting Hole Center To Center Distance: 1.77" (45mm)
- Front To Back Mounting Hole Center To Center Distance: 1.81" (46mm)
- Wiring Directions
