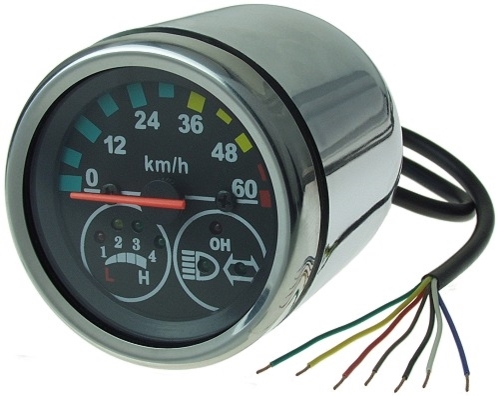

Round Speedometer with 48 Volt Battery Level Indicator plus Power, Headlight, and Turn Signal Indicators
-
Black Wire = Common (-) Negative
- Red Wire = Battery
Level Indicator 48V (+)
Positive
- Blue Wire = Headlight Indicator 12V (+) Positive
- Green Wire = Turn
Signal Left 12V (+) Positive
- Yellow Wire = Turn Signal Right 12V (+)
Positive
- Brown Wire = Speedometer (-) Negative
- White Wire
= Speedometer 0-60km/h = ~5V-48V (+) Positive
