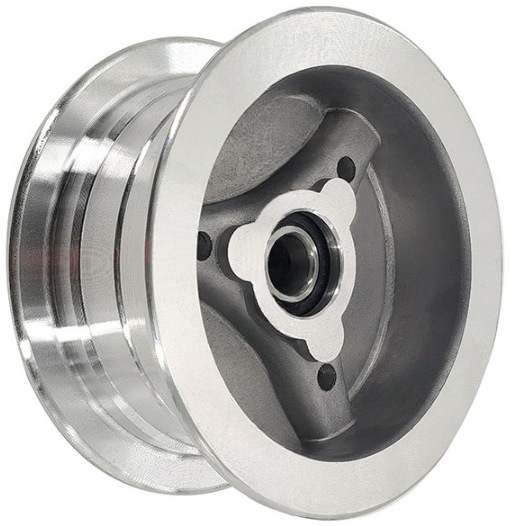

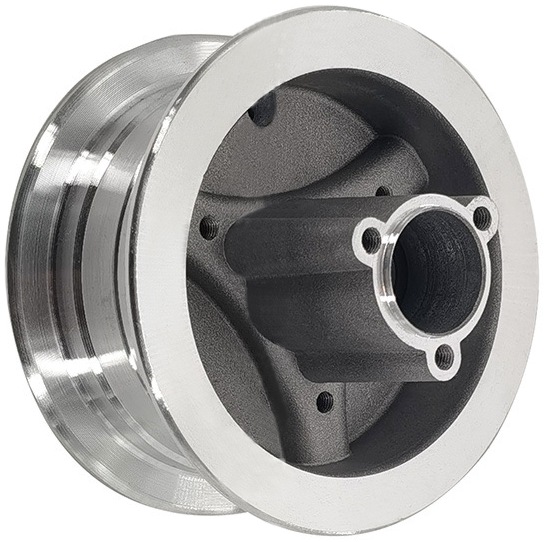

Rear Rim for 9x3.50-4 or 10x3.00-4 Tires
- Rear aluminum alloy electric scooter or go-kart rim.
- Two-piece split rim design for easy tire installation.
- Includes 3 bolts that hold rim halves together and bearing spacer that goes between the two bearings.
- Hub has three
threaded holes with R34 mounting pattern on one side.
- Rim is 2-3/4" wide x 4-7/8" high.
- Two pre-installed 6002 RS wheel bearings.
- The wheel bearings installed on this rim are for 15mm diameter axles.
- The chain sprocket or disc brake rotor mounting bolt holes are spaced 33.77mm apart from center to center and have an R34 mounting pattern.
Compatible with the following tire and tube size:
- 9x3.50-4
- 10x3.00-4
- 2.80/2.50-4
- 3.00-4
- 4.10-4
- 4.10/3.50-4
