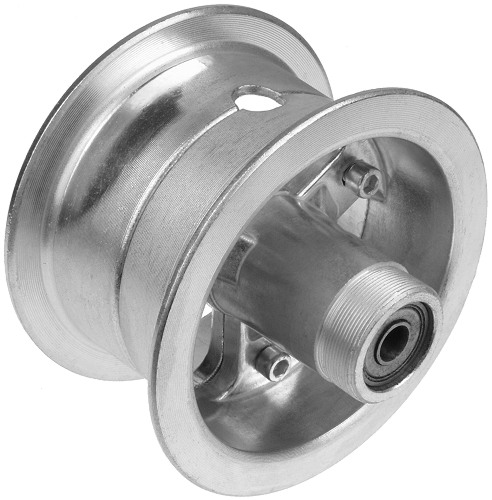

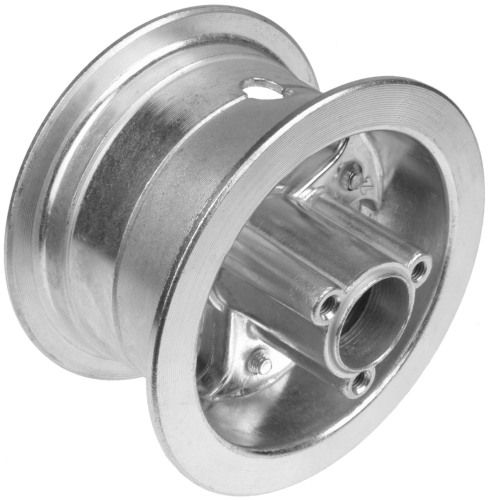

Rear Rim for 9x3.50-4 or 10x3.00-4 Tires
- Rear aluminum alloy electric scooter rim for 9x3.5-4 or 10x3.00-4 tires and
tubes.
- Two-piece split rim design for easy tire installation.
- Hub has three
threaded holes on one side and is threaded with M35x1.00
right-hand threads on the other side.
- Rim is 2-3/4" wide x 4-7/8" high.
- Hub is 4-1/4"
wide.
- Two pre-installed 6000RS wheel bearings.
- The wheel bearings installed on this rim are for 10mm diameter axles.
- The chain sprocket or disc brake rotor mounting bolt holes are spaced 33.77mm apart from center to center and have an R34 mounting pattern.
