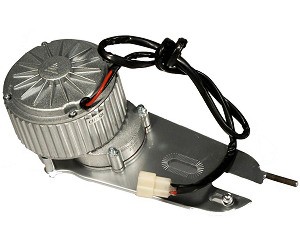

Motor with Mounting Plate for eZip and IZIP Electric Bicycles and Currie Electro-Drive Kits
- 24V 450W electric bicycle motor with built-in gear reduction transmission.
- Output shaft speed 470 RPM.
- Includes 9 tooth sprocket for 1/2" x 1/8" bicycle chain.
- Different size sprockets are available for this motor.
- Output shaft is 11mm OD with a 4mm wide x 2mm deep keyway.
- Powerful four brush permanent magnet design.
- 100% ball bearing construction.
- 24" long power leads.
- Shaft rotation reversible by reversing power leads.
- Motor dimensions: 4-1/4" outside diameter x 3-1/2" long excluding transmission and output shaft, 4-1/2" long including transmission and output shaft.
- OEM Currie® motor.
Motor Dimensions: PDF
