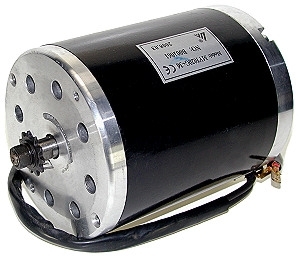

36 Volt 500 Watt Electric Scooter motor.
- 36V 500W 2500 RPM electric
scooter motor.
- Powerful four brush permanent magnet design with 100% ball bearing construction.
- Includes 11 tooth sprocket for #25 chain. 8.5mm x 10mm sprocket mounting area.
- Different size sprockets are available for this motor.
- 18" long power leads.
- Shaft rotation reversible by reversing power leads.
- Motor shaft starts at 12mm OD and is stepped down to 10mm OD with two flat spots that are 8.5mm apart where the sprocket mounts, past the sprocket is an 8mm left hand threaded post for the nut and washer which holds the sprocket in place.
- Dimensions: 4-1/2" outside diameter x 5-1/4" long excluding shaft, 6-1/4" long including shaft.
- Front and rear ends of motor have threaded mounting holes.
- Cross references motor case numbers: MY1020-36 and B002367
- Weight 9.1 lbs.
- Made by Unite®.
Motor Dimensions: PDF
Compatibility:
- Razor MX500 and SX500 electric dirt bikes.
