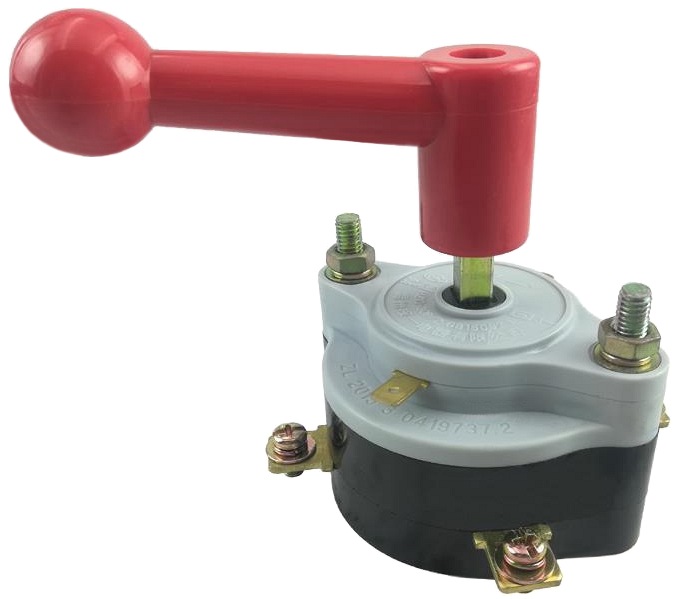

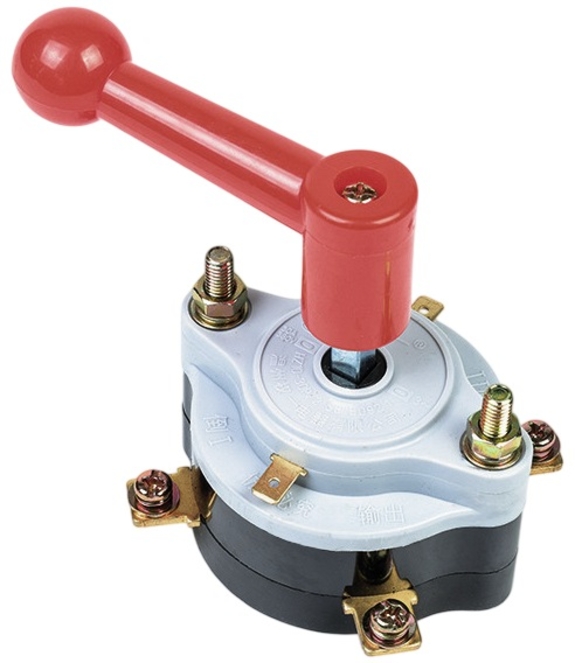

Heavy Duty Motor Reversing Switch
- Heavy-duty motor reversing switch for electric cars, golf carts, ATVs, quads, go-karts, rickshaws, small work trucks, and other small to medium size electric vehicles.
- The dimensions of this switch including the handle and terminals are 4.75" high x 2.8" wide x 4" deep.
- Three position switch has reverse (left), neutral (center), and forward (right) positions.
- The selector handle is removable for panel mount installation.
- Wire terminal mounting screws are 5mm and work with #10 ring terminals.
- This is the same type of forward/reverse switch found on many electric golf carts, rickshaws, and work trucks.
- Suitable for DC motors 5000 Watts and under.
