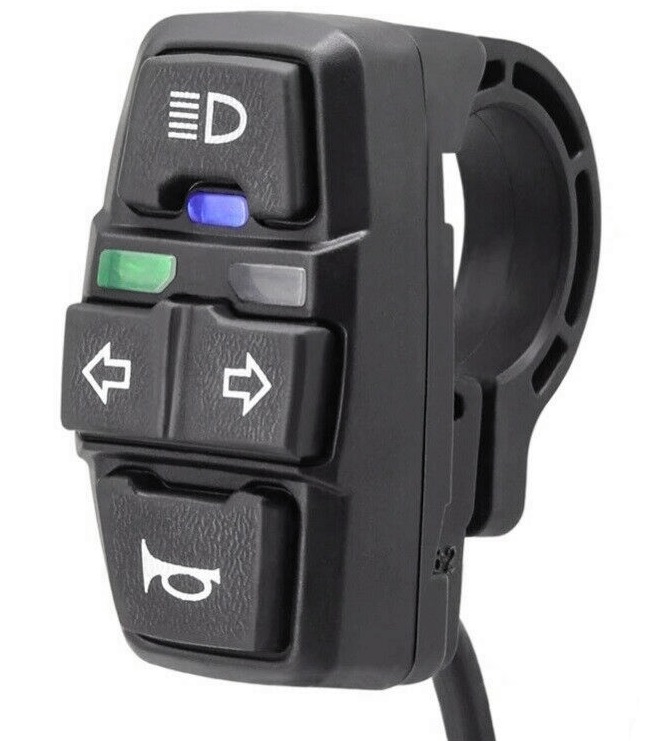

Handlebar Mount Switch Cluster with Indicator Lights for Turn Signals, Lights and Horn
- Voltage: 36 Volts through 48 Volts (36V-48V). 56 Volt (56V) Maximum
- Current: 1 Amp (1A) Maximum
- For 7/8" (22.2mm) handlebars.

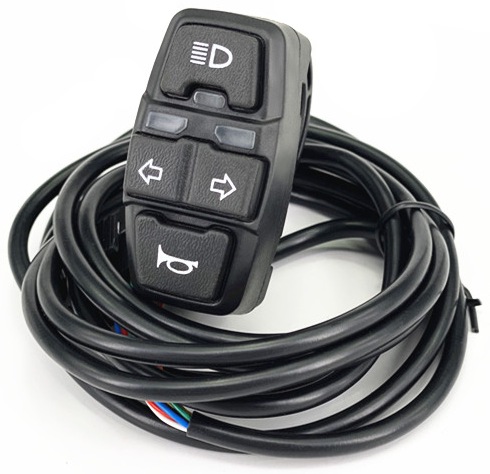

- 78" (2000mm) long wire cable.
- IPX4 water resistant.
- The turn signal switches operate independently so the left turn signal can be on, the right turn signal can be on, or both turn signals can be on at the same time for hazard lights.
- We carry Compatible Wire Connectors for this switch.

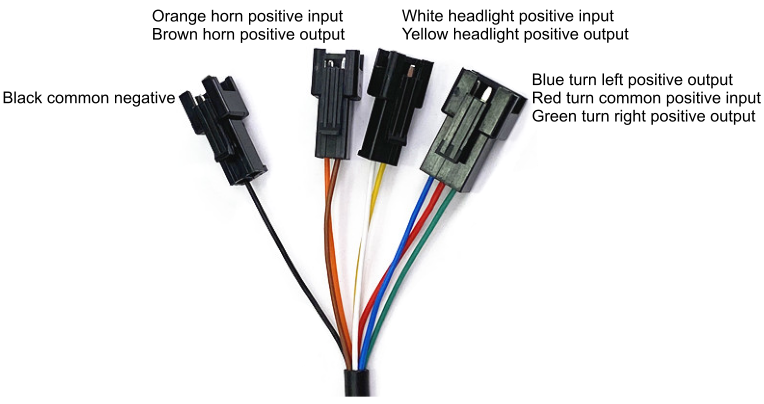

Wiring Pinout
- Black: common negative
- Orange: horn positive input
- Brown: horn positive output
- White: headlight positive input
- Yellow: headlight positive output
- Blue: turn left positive output
- Red: turn common positive input
- Green: turn right positive output
Note:
- With the exception of the black common negative wire, the other switch wires can only be used to control the on and off of the positive polarity. The positive and negative poles cannot be connected to the switches input and output wires at the same time, otherwise the switch or its wires will be damaged.
