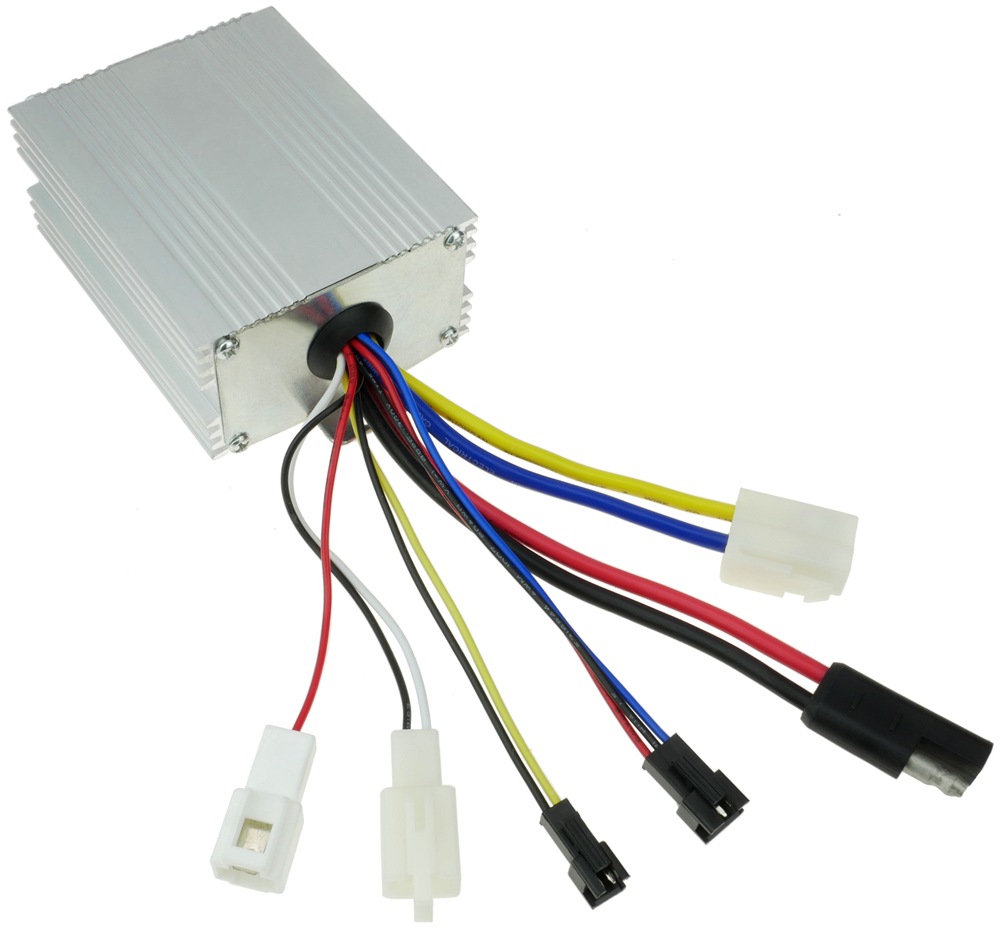

eZip, IZIP, and Currie Tech Electric Bicycle Speed Controller
This controller can be used to replace many eZip and IZIP
electric bicycle controllers that have pedal assist (PAS), however, the
pedal assist switch and function will be deleted after this controller
is installed so only the throttle controls the speed of the motor.
This controller has one handlebar brake lever connector. If a controller with two handlebar brake lever connectors is needed then in the Choose Your Options box above select "Two Brake Levers" and item # BRK-ADAPTER8 will be included to adapt this controller to have two brake switch connectors.
Designed for 24 Volt motors up to 600 Watts. Maximum current 35 Amps. Under Voltage protection 20.5 Volts. Current limiting feature helps prevent controller and motor damage due to over-current conditions. Fits Currie Electro Drive 450 Watt electric bike conversion kit plus many eZip and IZIP electric bicycles.
Some controllers that this one replaces have wires coming out of the long
side instead of the short side of the case as this controller does.
Replaces model or blueprint numbers: 24V 35A / 24V 1-4V 35A / CT-2435-003 / DM-CB24-PAS / DM-140LA / DM-电-140LA
With deletion of the bike's pedal assist function replaces model numbers: CT-2435-001 / CT-2435-002 / CB24-YR8
Dimensions not including wires are 4-3/8" long with mounting tabs or 3-1/2" long without mounting tabs x 2-5/8" wide x 1-1/2" high. The average wire length is 4-1/2".
Wiring Directions
