Item #: KIT-136-5
Availability: In Stock
Price: $629.20
    Battery Pack to Controller Wires:

    Charger Port to Controller Wires:

    Motor to Controller Wires:

    Power Switch to Controller Wires:

    Reverse Switch to Controller Wires:

    Throttle to Controller Wires:

    Voltmeter to Controller Wires:


    Update price
    Quantity:

    Select Wire Lengths In the Options Box Above

    Both of the motors spin clockwise when the controller is in the forward direction mode. The motors in this kit have forward brush timing so they spin at different speeds in the clockwise and counterclockwise directions. Due to this both motors should be installed so they spin clockwise when the vehicle is moving forward.

    The SWT-23 handlebar mount switch with red button is wired as the reverse switch, and the SWT-95 toggle switch is wired as the on/off main power switch. These functions of these switches could be changed upon request.

    The motors in this kit have a 9 tooth sprocket for #410 (1/2" x 1/8") bicycle chain.

    We have wheel and axle sprockets for #410 chain, freewheels, freewheel to axle adapters, and sprocket to axle hubs which can be used with this kit.

    Need sprockets or chain for your project? Click below to view our full selection of sprockets and chains.

    In Stock
    In Stock
    In Stock
    In Stock
    In Stock
    In Stock
    In Stock
    In Stock
    In Stock
    In Stock
    In Stock
    In Stock
    In Stock

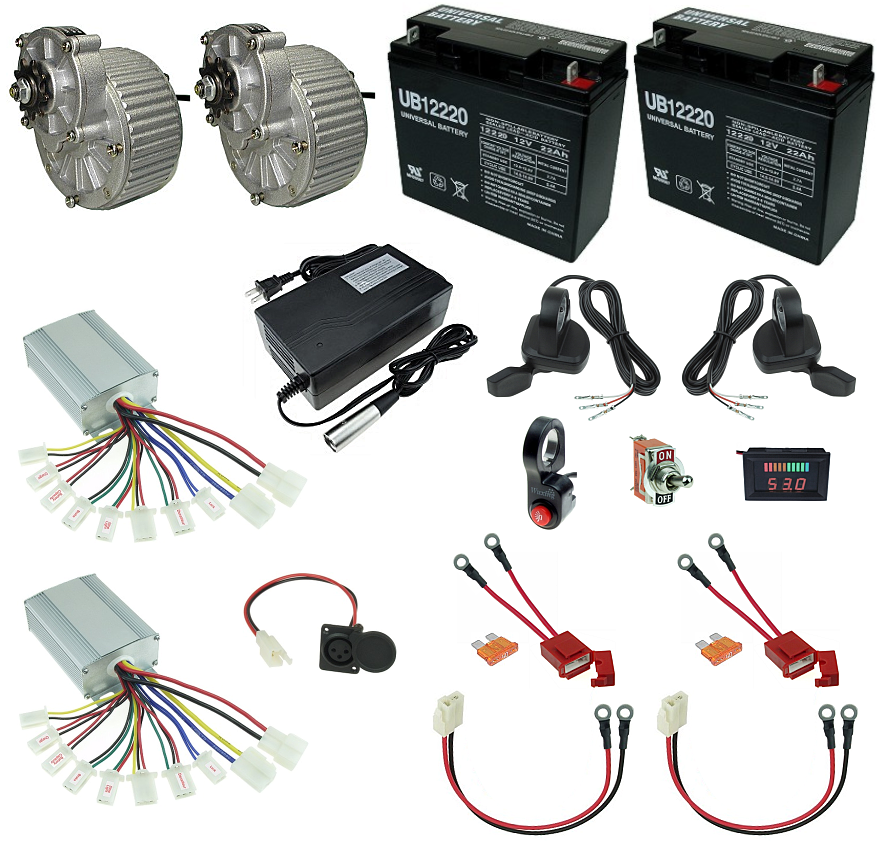

  • Two Quantity 12 Volt 22Ah Batteries with 12 Month Warranty
  • 24 Volt 3 Amp Automatic Battery Charger with 3-Pin XLR plug
  • 3 Pin Black Nylon XLR Charger Port with Cover
  • 40 Amp ATO Blade Fuse
  • 24 Volt Battery Pack Wiring Harness with Fuse Holder, 5mm Ring Terminals
  • 7-100 Volt DC Red LED Digital Voltmeter with Battery Level Indicator
  • 24 Volt 450 Watt Electric Bicycle Gear Motor
  • 24 Volt 500 Watt Speed Controller with Reverse
  • Handlebar Mount On/Off Power Switch
  • On-Off Toggle Switch, SPST 2-Terminal
  • Thumb Throttle (Left Hand Version)
  • Thumb Throttle (Right Hand Version)
  • "When you need Electric Scooter Parts, go to: ElectricScooterParts.com"
