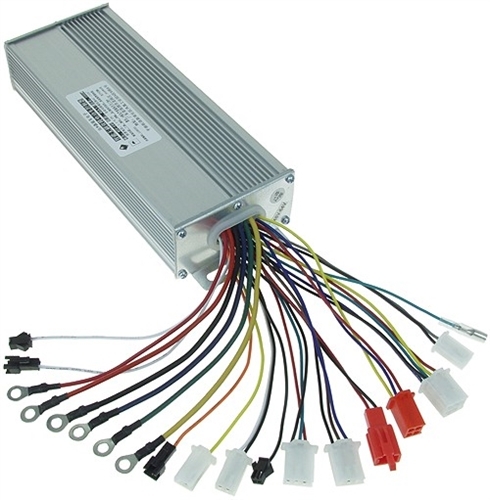

60/72 Volt 1000 Watt Electric Scooter/Moped/Bike Brushless Motor Speed Controller
(CW or CCW with Optional Reverse)
Designed for 60V and 72V brushless DC motors between 1000 and 1200 Watts. Programmable to operate motor in clockwise or counterclockwise direction and has a reverse function which is optional to use. Replaces controllers with fewer connectors because most of the connectors are optional to use. Automatically selects under Voltage protection of 52 Volts with 60 Volt battery packs and 62 Volts with 72 Volt battery packs. Current limiting feature helps prevent controller and motor damage due to over-current conditions. Under voltage protection feature helps prevent over-discharge and extends life of battery pack. Compatible with standard 3-wire variable speed hall-effect throttles.Dimensions: 8-1/2"
L x 3-1/4" W x 1-1/4" H
Item # SPD-601000BLDC
Wiring Directions
