Powered, geared, and test-proven for speeds up to 26 MPH on flat ground. Can be geared for higher speeds by purchasing and installing the following sprockets on the motor:

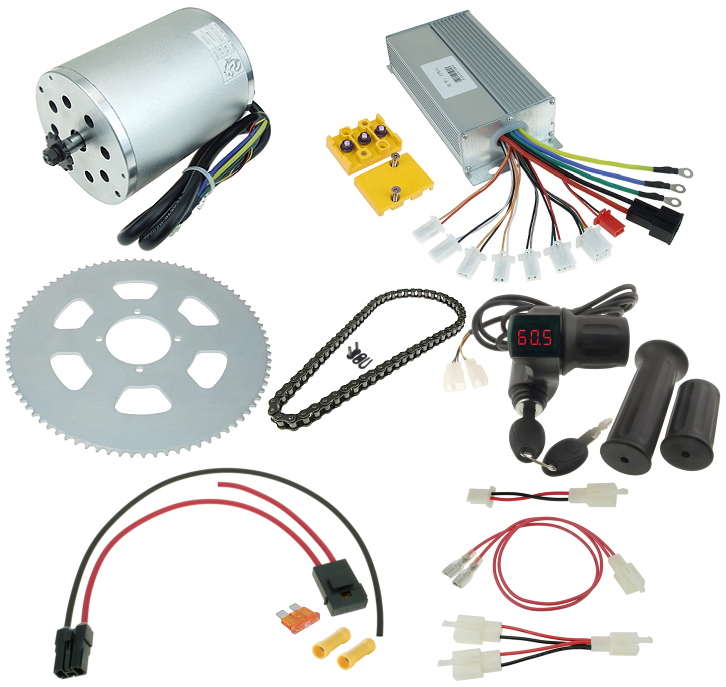

This is a no batteries (NB) kit that does not include a battery and a battery charger.
The controller and battery wiring harness in this kit are compatible with a 60 Volt LiFePO4 battery that has a 40 Amp or higher continuous discharge current rating.
The key switch on the throttle is wired as the bike's main on-off power switch. The bike's original power switch activates the speed limiter function of the controller. When the controller's speed limiter function is switched on the motor will operate at a reduced power level for slower speeds and a longer range and ride-time.
This modification kit requires custom installation (mounting) of the controller.
The motor in this kit is the same size as the original motor and directly replaces it with only one metal tab needing to be cut off the bike's swingarm so the motor's power cord does not hit it, and one 1/4" hole drilled into the inside of the swingarm for one of the motor's bolt heads to fit inside. 1/4" Hole Template Directions (PDF)
This kit is electronically 100% plug-and-play. We install matching connectors on every part of this kit and label them so all you have to do is plug everything together.
This kit is designed to be used with a 60 Volt LiFePO4 battery that has a 40 Amp or higher maximum continuous output rating plus a battery charger and charger port. Examples of compatible batteries not sold by us are listed below (link opens in new windows).
