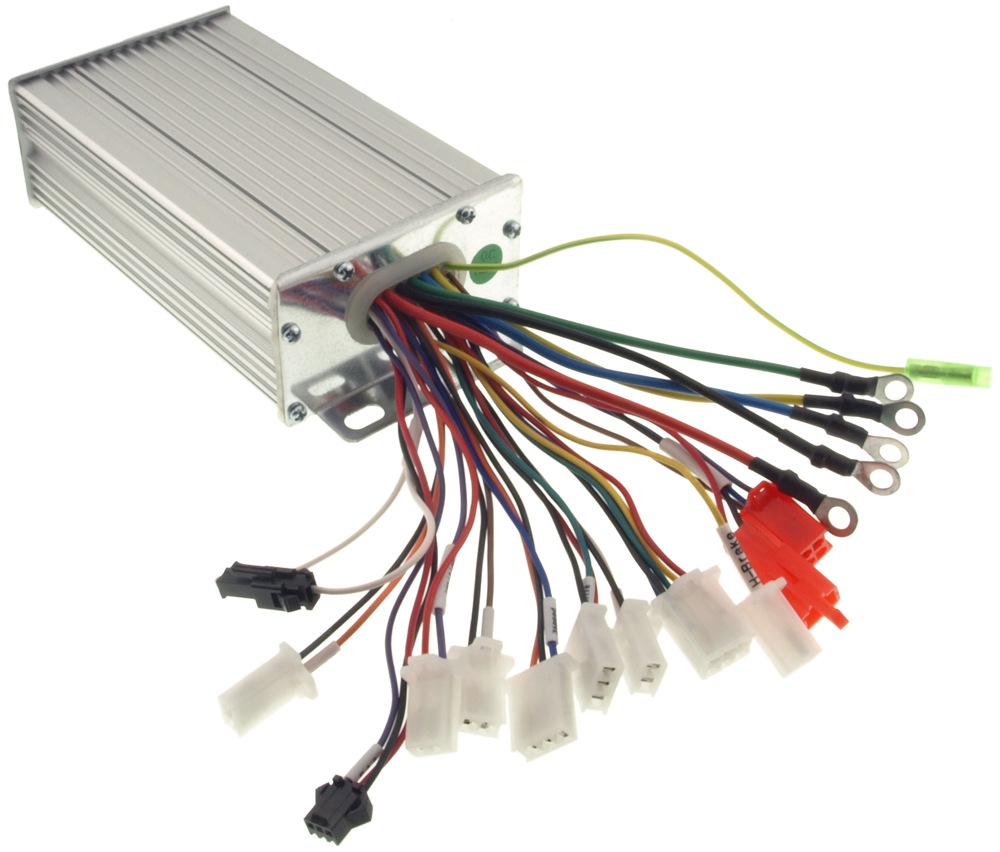

48/60/64/72 Volt 1000 Watt Electric Scooter/Moped/Bike Brushless Motor Speed Controller (CW or CCW with Optional Reverse)
Designed for 48V, 60V, 64V, and 72V brushless DC motors between 800W and 1000W. Programmable to operate motor in clockwise or counterclockwise direction and has a reverse function which is optional to use. Replaces controllers with fewer connectors because most of the connectors are optional to use. 35 Amp current limit. Under Voltage protection 40V. Current limiting feature helps prevent controller and motor damage due to over-current conditions. Under voltage protection feature helps prevent over-discharge and extends life of battery pack. Compatible with standard 3-wire variable speed hall-effect throttles. Dimensions: 7-1/8"
L x 3-1/4" W x 2" H
- There is a top speed adjustable limiter for this controller which is item # THR-LIMITER22
- There is an adapter to connect a battery indicator to this controller which is item # PSW-ADAPTER1
- There is a jumper plug to put the 3-speed control onto high speed without installing a switch which is item # JMP-3F1T2
Wiring Directions
