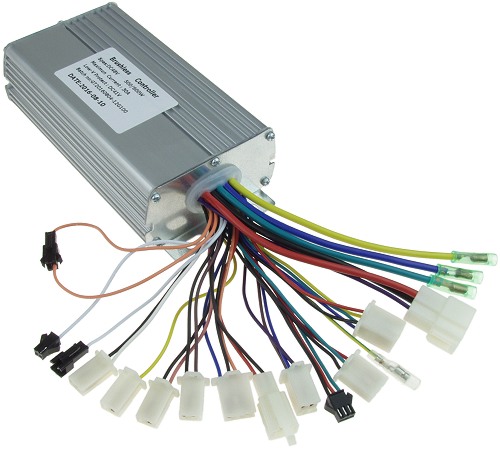

48/60/64 Volt 800 Watt Electric Scooter/Moped/Bike Brushless Motor Speed Controller
(CW or CCW with Optional Reverse)
Designed for 48V, 60V, and 64V brushless DC motors between 800W and 1000W. Programmable to operate motor in clockwise or counterclockwise direction and has a reverse function which is optional to use. Replaces controllers with fewer connectors because most of the connectors are optional to use. Automatically selects under Voltage protection of 41 Volts with 48 Volt battery packs, 52 Volts with 60 Volt battery packs, and 52.5 Volts with 64 Volt battery packs. Current limiting feature helps prevent controller and motor damage due to over-current conditions. Under voltage protection feature helps prevent over-discharge and extends life of battery pack. Compatible with standard 3-wire variable speed hall-effect throttles.Dimensions: 7-1/2"
L x 3-1/4" W x 1-1/4" H
Item # SPD-48800BLDC
Wiring Directions
