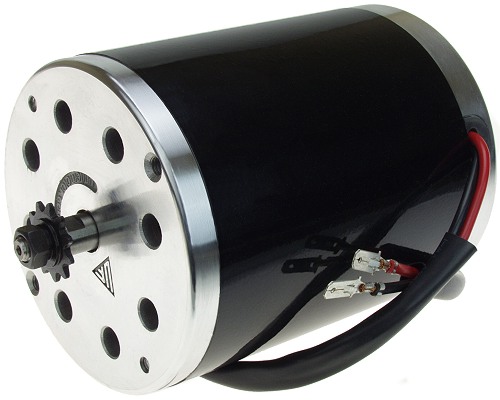

48 Volt 750 Watt 2800 RPM Electric Scooter Motor
- 48V 750W 2800RPM electric scooter motor.
- Powerful four brush permanent magnet design with 100% ball bearing construction.
- Includes 11 tooth sprocket for #25 chain. 8.5mm x 10mm sprocket mounting area.
- Different size sprockets are available for this motor.
- 18" long power leads.
- Shaft rotation reversible by reversing power leads.
- Dimensions: 4.2" (106mm) wide x 5.275" (134mm) long excluding shaft, 6-1/2" long including shaft.
- Shaft is 1" long and sprocket is spaced 5/8" away from front of motor.
- Front and rear ends of motor have threaded mounting holes.
- Made by Unite®.
- Weight 9 lbs.
- Cross references motor case number: MY1020
Dimensions: PDF
