- Toggle Switch to Controller wire length 48"
- Throttle to Controller wire length 48"
- Charger Port to Controller wire length 24"
- Motor to Controller wire length 24"
- Battery to Controller wire length 24"
The toggle switch is the On-Off power switch and has 48" of wire so it can be mounted on the front of the go kart if wanted. This wire length can be shortened on request.
The red push button switch on the throttle is the reverse switch.The chain with master link in this kit is oversized and will need to be shortened to the correct length after the motor is installed.
This is a modification parts kit and requires custom installation of all parts.

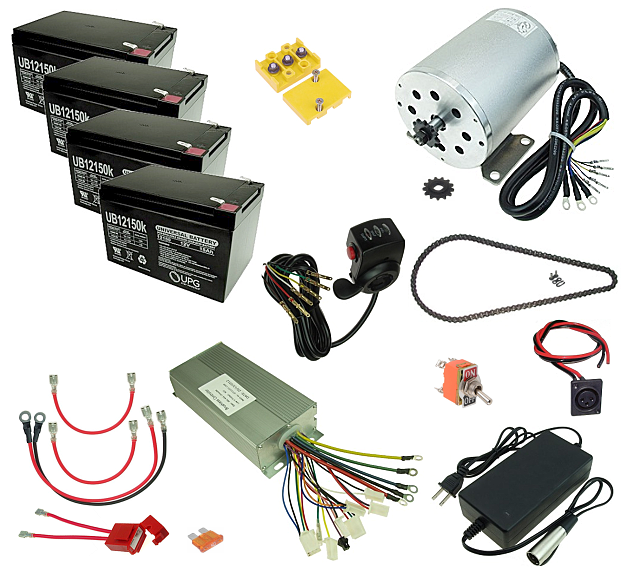

This kit contains the following parts and labor (click below for details):
This kit contains the following parts (click below for details):
|
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
Out of Stock
|
Labor to install matching connectors on every part of this kit and label them so all you have to do is plug everything together.
Four Quantity 12 Volt 15 Ah Batteries with 12 Month Warranty
80 Links of Heavy Duty #25 Chain with Master Link
48 Volt 1.6 Amp Automatic Battery Charger with 3-Pin XLR Plug
3-Terminal Junction Box with Cover
3 Pin Black Nylon XLR Charger Port
48 Volt Battery Pack Wiring Harness with Fuse Holder and Fuse
48 Volt 1800 Watt Brushless DC Motor with Mounting Bracket
13 Tooth 10mm Double D-Bore Sprocket for #25 Chain
On-Off Toggle Switch, SPST 2-Terminal
Thumb Throttle with 48 Volt LED Meter and On/Off Switch
3-Terminal Female Jumper Plug with Jumpered Terminals 1 and 2
48/60/72 Volt 1500/1600/1800/2000 Watt Electric Scooter/Moped/Bike Brushless DC Motor Speed Controller SPD-482000BLDC-B
|
$35.00,$179.80,$14.40,$44.95,$3.95,$3.95,$17.95,$149.95,$9.95,$2.95,$21.95,$1.95,$99.95
The total of the individual parts and labor in this kit is
