48 Volt 1800 Watt Razor Dune Buggy Modification Kit for LiFePO4 or Li-ion Battery
- Throttle to controller wire length 64"
- Battery pack to controller wire length 24"
- Motor to controller wire length 24"
This is a modification parts kit and requires custom installation of all parts.
This is a 48 Volt no batteries (NB) kit that does not include a battery and it does not work with the original Razor Dune Buggy battery pack.
We install matching labeled wire connectors on all parts of the kit for easy plug-and-play assembly and we bench-test the kit to make sure that everything works properly before shipping it to you.
The red push-button switch on the throttle is the on-off switch for this kit.
The chain with master link in this kit is oversized and will need to be shortened to the correct length after the motor is installed.

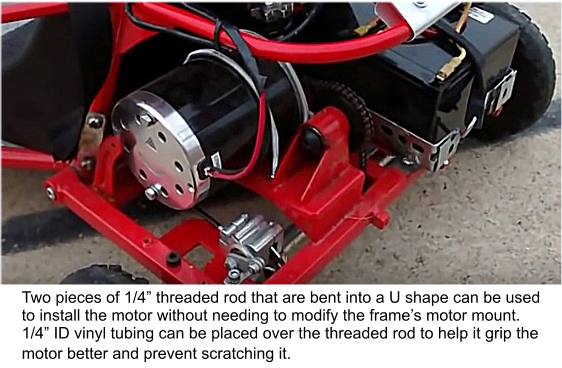

Two pieces of 1/4” threaded rod (not included with kit) that are bent into a U shape can be used to install the motor without needing to modify the frame’s motor mount. 1/4” ID vinyl tubing can be placed over the threaded rod to help it grip the motor better and prevent scratching it.
A different version of this kit can be special ordered with a motor that has a mounting base if you prefer to modify the frame's motor mount or make a motor mount adapter instead of using threaded rod.
This kit is designed to be used with a 48 Volt LiFePO4 or Li-ion battery that has a 40 Amp or higher maximum continuous output rating plus a battery charger and charger port.

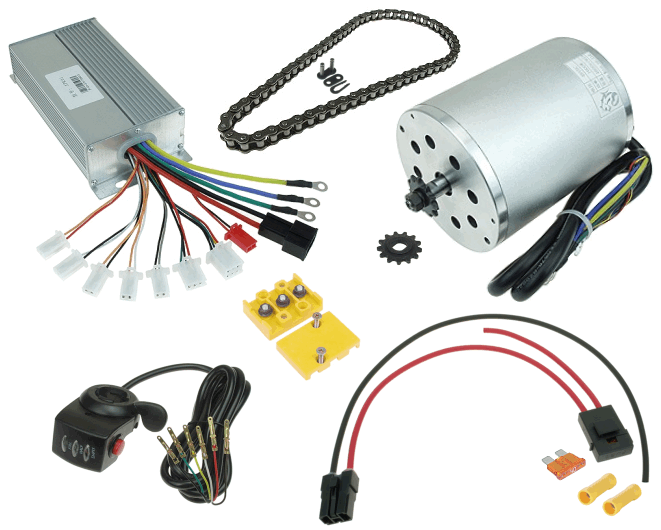

This kit contains the following parts and labor (click below for details):
This kit contains the following parts (click below for details):
|
In Stock
In Stock
In Stock
In Stock
In Stock
Out of Stock
In Stock
In Stock
In Stock
In Stock
|
Labor to install matching connectors on every part of this kit and label them so all you have to do is plug everything together.
80 Links of Heavy Duty #25 Chain with Master Link
Yellow Insulated Butt Splice Connector
3-Terminal Junction Box with Cover
40 Amp ATO Blade Fuse
48 Volt 1800 Watt Brushless DC Motor
13 Tooth 10mm Double D-Bore Sprocket for #25 Chain
Thumb Throttle with 48 Volt LED Meter and On/Off Switch
48 Volt 1500/1600/1800 Watt Electric Scooter/Moped/Bike/Go Kart Brushless DC Motor Speed Controller for Lithium Batteries
Battery Wiring Harness for 48 Volt 1800 Watt Razor MX and SX Series Dirt Bike Kit
|
$35.00,$14.40,$0.10,$3.95,$0.95,$149.95,$9.95,$21.95,$79.95,$15.95
The total of the individual parts and labor in this kit is
One or more of the parts in this kit is currently In StockIn StockIn StockIn StockIn StockOut of StockIn StockIn StockIn StockIn Stock.
Notify Me When This Kit is Back in Stock
