- Toggle switch to controller wire length 48"
- Throttle to controller wire length 48"
- Battery pack to controller wire length 24"
- Charger port wire length 24"
- Motor to controller wire length 24"
The toggle switch has 48" of wire so it can be mounted on the front
of the Dune Buggy if wanted. This wire length can be shortened on
request.
The chain with master link in this kit is oversized and will need to
be shortened to the correct length after the motor is installed.
Two pieces of 1/4” threaded rod that are bent into a U shape can be
used to install the motor without needing to modify the frame’s motor
mount. 1/4” ID vinyl tubing can be placed over the threaded rod to help
it grip the motor better and prevent scratching it.
A different version of this kit can be special ordered with a motor
that has a mounting base if you prefer to modify the frame's motor mount
or make a motor mount adapter instead of using threaded rod.
This is a modification parts kit and requires custom installation of all parts.

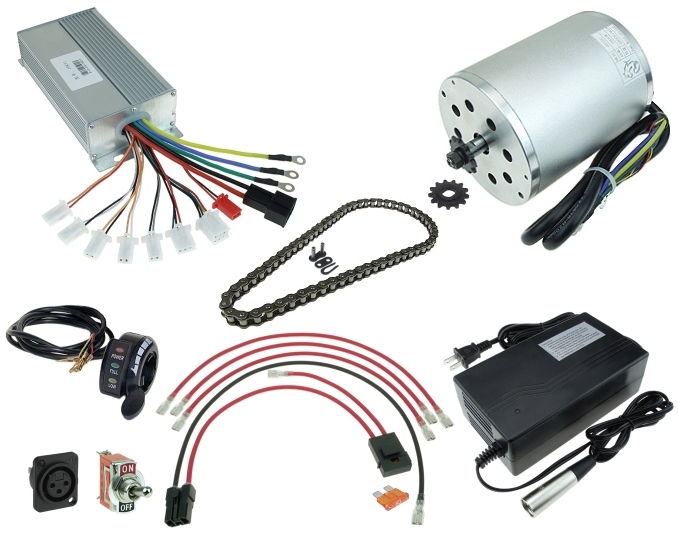

This kit contains the following parts and labor (click below for details):
This kit contains the following parts (click below for details):
|
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
Out of Stock
In Stock
In Stock
In Stock
In Stock
|
Labor to install matching connectors on every part of this kit and label them so all you have to do is plug everything together.
80 Links of Heavy Duty #25 Chain with Master Link
48 Volt 1.6 Amp Automatic Battery Charger with 3-Pin XLR Plug
3-Terminal Junction Box with Cover
3 Pin Black Nylon XLR Charger Port
40 Amp ATO Blade Fuse
Battery Pack Wiring Harness for 48 Volt 1800 Watt Razor MX and SX Series Dirt Bike Kit
48 Volt 1800 Watt Brushless DC Motor
13 Tooth 10mm Double D-Bore Sprocket for #25 Chain
On-Off Toggle Switch, SPST 2-Terminal
Thumb Throttle with 48 Volt Power Meter
48 Volt 1500/1600/1800 Watt Electric Scooter/Moped/Bike/Go Kart Brushless DC Motor Speed Controller for Lithium Batteries
|
$35.00,$14.40,$44.95,$3.95,$3.95,$0.95,$19.95,$149.95,$9.95,$2.95,$19.95,$79.95
The total of the individual parts and labor in this kit is
One or more of the parts in this kit is currently In StockIn StockIn StockIn StockIn StockIn StockIn StockOut of StockIn StockIn StockIn StockIn Stock.
Notify Me When This Kit is Back in Stock
