This is a kit with no batteries (NB). We have this same kit with batteries which is our item # KIT-MX481800-10.
The motor in this kit is the same size as the original motor and directly replaces it with only one metal tab spacer needing to be cut off the bike's frame so the motor's power cord does not hit it, and one 1/4" hole drilled into the inside of the frame for one of the motor's bolt heads to fit inside.
1/4" Hole Template Directions (PDF)
This modification kit requires custom installation (mounting) of the battery pack and controller.
This kit is electronically 100% plug-and-play. We install matching
connectors on every part of this kit and label them so all you have to
do is plug everything together.

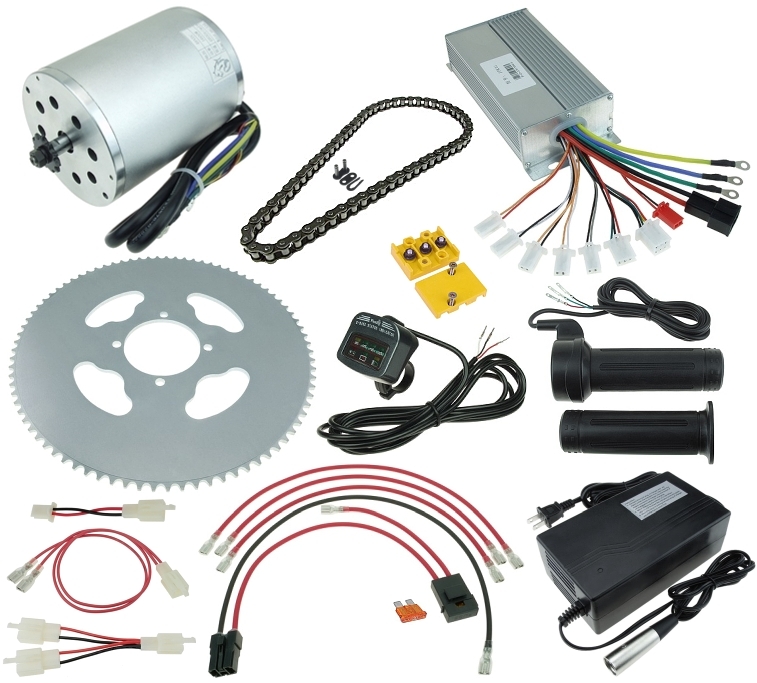

This kit contains the following parts and labor (click below for details):
This kit contains the following parts (click below for details):
|
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
Out of Stock
In Stock
In Stock
In Stock
In Stock
In Stock
|
Labor to install matching connectors on every part of this kit and label them so all you have to do is plug everything together.
120 Links Of 8mm Chain with Master Link
48 Volt 3 Amp Automatic Battery Charger with 3-Pin XLR Plug
3-Terminal Junction Box with Cover
Charger Port Polarity Adapter
40 Amp ATO Blade Fuse
Battery Pack Wiring Harness for 48 Volt 1800 Watt Razor MX and SX Series Dirt Bike Kit
48 Volt Battery Status, Power On, and Headlight On Indicator
48 Volt 1800 Watt Brushless DC Motor
Razor MX500 and MX650 Power Switch to Aftermarket Speed Controller Switch Connector Adapter
Razor MX500 and MX650 Dual Brake Switch to Aftermarket Speed Controller Brake Switch Connector Adapter
84 Tooth Sprocket for 8mm Chain
Premium Full Length Twist Throttle with Matching Grip
48 Volt 1500/1600/1800 Watt Electric Scooter/Moped/Bike/Go Kart Brushless DC Motor Speed Controller for Lithium Batteries
|
$35.00,$24.00,$49.95,$3.95,$4.95,$0.95,$19.95,$14.95,$149.95,$5.95,$5.95,$39.95,$22.95,$79.95
The total of the individual parts and labor in this kit is
One or more of the parts in this kit is currently In StockIn StockIn StockIn StockIn StockIn StockIn StockIn StockOut of StockIn StockIn StockIn StockIn StockIn Stock.
Notify Me When This Kit is Back in Stock
