Wire Routing Chart
The controller to junction box wires are approximately 5 inches long.
- Select wire length options above.
- Controller can be programmed so motor runs clockwise or counterclockwise.
- A reverse switch can be wired to the controller if needed.
- This kit has a motor with mounting base. This same kit is available with a motor without mounting base.
- Shipping weight is 116 pounds.

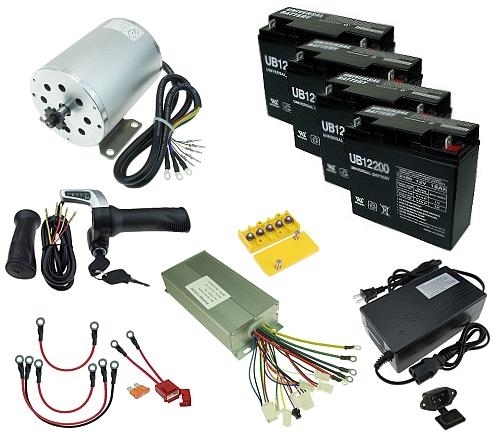

This kit contains the following parts and labor (click below for details):
This kit contains the following parts (click below for details):
Labor to install matching connectors on every part of this kit and label them so all you have to do is plug everything together.
Four Quantity 12 Volt 22Ah Batteries with 12 Month Warranty
48 Volt 3 Amp Automatic Battery Charger with 3-Port House Plug
3 Pin House Port with Dust Cover
5-Terminal Junction Box with Cover
48 Volt Battery Pack Wiring Harness with Fuse Holder and Fuse, 6.3mm Ring Terminals
48 Volt 1800 Watt Brushless DC Motor with Mounting Bracket
48/60/72 Volt 1500/1600/1800 Watt Electric Scooter/Moped/Bike Brushless DC Motor Speed Controller
Full Length Twist Throttle with 48 Volt Power Meter and Key Switch
The total of the individual parts and labor in this kit is
