This is a custom-made kit so please allow around 3-5 business days for the kit to be produced and shipped after the order is placed.
This is a custom-made kit with a custom-made axle sprocket so please allow around 5-10 business days for the kit to be produced and shipped after the order is placed.
Wire Routing Chart
The controller to junction box wires are approximately 5 inches long.
- Select wire length options above.
- Controller can be programmed so motor runs clockwise or counterclockwise.
- A reverse switch can be wired to the controller if needed.
- This kit has a motor without mounting base. This same kit is available with a motor with mounting base.
- Shipping weight is 116 pounds.

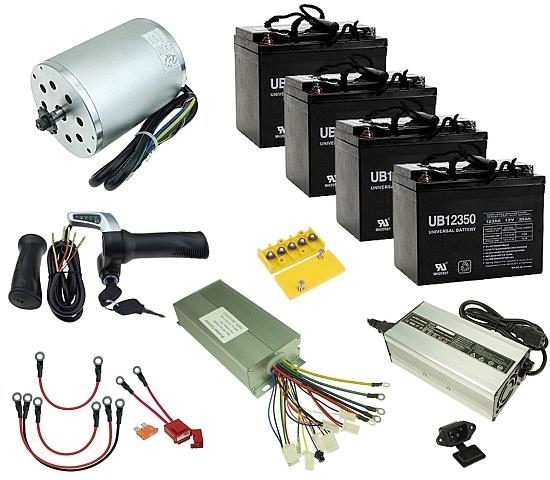

This kit contains the following parts and labor (click below for details):
This kit contains the following parts (click below for details):
|
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
|
Labor to install matching connectors on every part of this kit and label them so all you have to do is plug everything together.
Four Quantity 12 Volt 35 Ah Electric Scooter Batteries with Bolt Down Posts and 12 Month Warranty
48 Volt 6 Amp Automatic Battery Charger with 3-Port House Plug
3 Pin House Port with Dust Cover
5-Terminal Junction Box with Cover
48 Volt Battery Pack Wiring Harness with Fuse Holder and Fuse, 6.3mm Ring Terminals
48 Volt 1800 Watt Brushless DC Motor
48/60/72 Volt 1500/1600/1800/2000 Watt Electric Scooter/Moped/Bike Brushless DC Motor Speed Controller
Full Length Twist Throttle with 48 Volt Power Meter and Key Switch
3-Terminal Female Jumper Plug with Jumpered Terminals 1 and 2
|
$35.00,$319.80,$109.95,$4.95,$4.95,$18.95,$149.95,$99.95,$29.95,$1.95
The total of the individual parts and labor in this kit is
One or more of the parts in this kit is currently In StockIn StockIn StockIn StockIn StockIn StockIn StockIn StockIn StockIn Stock.
