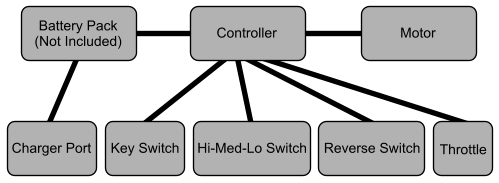

Wire Routing Chart
- This kit does not include batteries. We also have this kit available With Batteries.
- Includes 11-tooth motor sprocket for T8F (8mm) chain.
- To prevent overloading the motor and controller, the appropriate size axle sprocket must be used with this kit. If you are not sure how many teeth the axle sprocket should have please Contact Us so we can run the calculations for your quad's wheel size.
- This kit has reverse with a toggle switch that controls forward and reverse directions.
- The motor can be wired to run the motor clockwise or counterclockwise when the forward-reverse switch is in the forward position so the motor can be mounted with its shaft on the left side or right side of the go-kart.
⚠️ Warning: When using this kit to convert a gas powered ATV or Quad to electric, the original axle sprocket usually has too few teeth to provide the proper gear ratio for the electric motor, and using the original sprocket may overheat and damage the electric motor and/or controller. T8F chain and sprockets will usually be required to achieve the proper gear ratio while keeping the axle sprocket from being larger than the rear tires. If you would like help determining the compatible gear ratio and sprocket sizes for this kit, please contact us and we'll be happy to help.
We have wheel and axle sprockets for T8F (8mm) chain which can be used with this kit.
Click below to view our full selection of sprockets and chains.

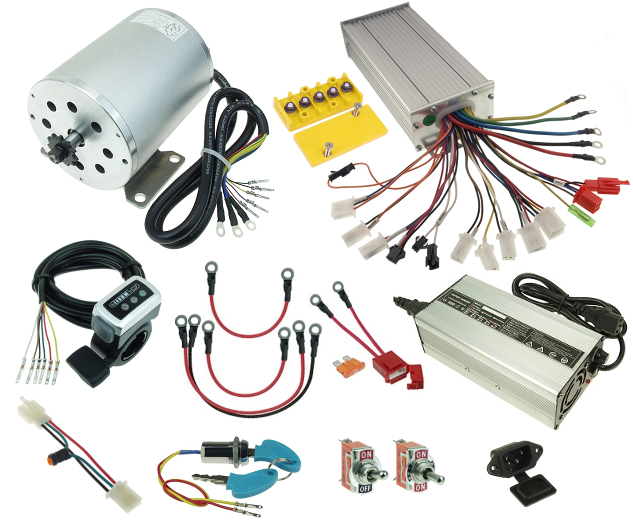

This kit contains the following parts and labor (click below for details):
This kit contains the following parts (click below for details):
|
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
|
Labor to assemble wiring harnesses and install matching connectors on every part of this kit and label them so all you have to do is plug everything together.
48 Volt 5 Amp Automatic Battery Charger with 3-Port House Plug
3 Pin House Port with Dust Cover
5-Terminal Junction Box with Cover
48 Volt Battery Pack Wiring Harness with Fuse Holder and Fuse, 5mm Ring Terminals
48 Volt 1800 Watt Brushless DC Motor with Mounting Bracket
2 Wire Key Switch with 2 Keys
On-Off Toggle Switch, SPST 2-Terminal
Thumb Throttle with 48 Volt Power Meter and Latching On/Off Switch
Throttle Top Speed Adjustable Limiter for SPD-482000BLDC-A and SPD-482000BLDC-B Controllers
48/60/72 Volt 1500/1600/1800/2000 Watt Electric Scooter/Moped/Bike Brushless DC Motor Speed Controller SPD-482000BLDC-B
|
$100.00,$99.95,$4.95,$4.95,$25.95,$149.95,$11.95,$2.95,$21.95,$12.95,$99.95
The total of the individual parts and labor in this kit is
One or more of the parts in this kit is currently In StockIn StockIn StockIn StockIn StockIn StockIn StockIn StockIn StockIn StockIn Stock.
