Wire Routing Chart
- Includes 10 tooth motor sprocket for #35 chain.
- This kit has reverse with a toggle switch that controls forward and reverse directions.
- The controller can be programmed to run the motor clockwise or counterclockwise when the forward-reverse switch is in the forward position so the motor can be mounted with its shaft on the left side or right side of the go-kart.
- This kit has a high-medium-low speed toggle switch which controls how fast the go-kart will run at. Select low speed for maximum ride-time and high speed for maximum performance and speed.
We have wheel and axle sprockets for 8mm and #35 chain which can be used with this kit.
Click below to view our full selection of sprockets and chains.
This kit contains the following parts and labor (click below for details):
This kit contains the following parts (click below for details):
|
In Stock
In Stock
Out of Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
Out of Stock
|
Labor to install matching connectors on every part of this kit and label them so all you have to do is plug everything together.

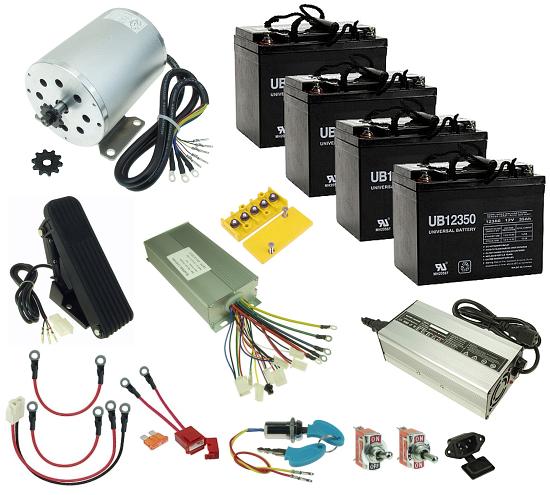

Four Quantity 12 Volt 35 Ah Electric Scooter Batteries with Bolt Down Posts and 12 Month Warranty
48 Volt 5 Amp Automatic Battery Charger with 3-Port House Plug
3 Pin House Port with Dust Cover
5-Terminal Junction Box with Cover
48 Volt Battery Pack Wiring Harness with Fuse Holder and Fuse, 6.3mm Ring Terminals
48 Volt 1800 Watt Brushless DC Motor with Mounting Bracket
10 Tooth Sprocket with 10mm x 8.5mm Double D-Bore for #35 Chain
2 Wire Key Switch with 2 Keys
On-Off Toggle Switch, SPST 2-Terminal
On-Off-On Toggle Switch, SPDT 3-Terminal
Premium Foot Pedal Throttle
48/60/72 Volt 1500/1600/1800/2000 Watt Electric Scooter/Moped/Bike Brushless DC Motor Speed Controller SPD-482000BLDC-B
|
$35.00,$319.80,$99.95,$4.95,$4.95,$17.95,$149.95,$9.95,$11.95,$2.95,$2.95,$34.95,$99.95
The total of the individual parts and labor in this kit is
One or more of the parts in this kit is currently In StockIn StockOut of StockIn StockIn StockIn StockIn StockIn StockIn StockIn StockIn StockIn StockOut of Stock.
Notify Me When This Kit is Back in Stock
