Item #: KIT-48301
Availability: In Stock
Price: $574.75

    Quantity:
    • Toggle switches to controller/relay wire length 48"
    • Throttle to controller wire length 48"
    • Battery pack to controller wire length 24"
    • Charger port wire length 24"
    • Controller to reverse relay wire length 12"
    • Motor to reverse relay wire length 18"

    This is a modification parts kit and requires custom installation of all parts.

    The toggle switches have 48" of wire so they can be mounted on the front of the Dune Buggy if wanted. These wire lengths can be shortened on request.

    The vehicle must be at a complete stop before switching from forward to reverse, or from reverse to forward. Otherwise the controller or drivetrain may become damaged.

    The chain with master link in this kit is oversized and will need to be shortened to the correct length after the motor is installed.

    Chain tensioners do not work with vehicles that have reverse so the chain tensioner will need to be deleted and the chain made to fit without a tensioner.

    Two pieces of 1/4” threaded rod that are bent into a U shape can be used to install the motor without needing to modify the frame’s motor mount. 1/4” ID vinyl tubing can be placed over the threaded rod to help it grip the motor better and prevent scratching it.

    A different version of this kit can be special ordered with a motor that has a mounting base if you prefer to modify the frame's motor mount or make a motor mount adapter instead of using threaded rod.

    This kit goes forward and reverse and has a reverse switch. We also have this kit available Without Reverse.

    In Stock
    In Stock
    In Stock
    In Stock
    In Stock
    In Stock
    In Stock
    In Stock
    In Stock
    In Stock
    In Stock
    In Stock
    In Stock
    In Stock

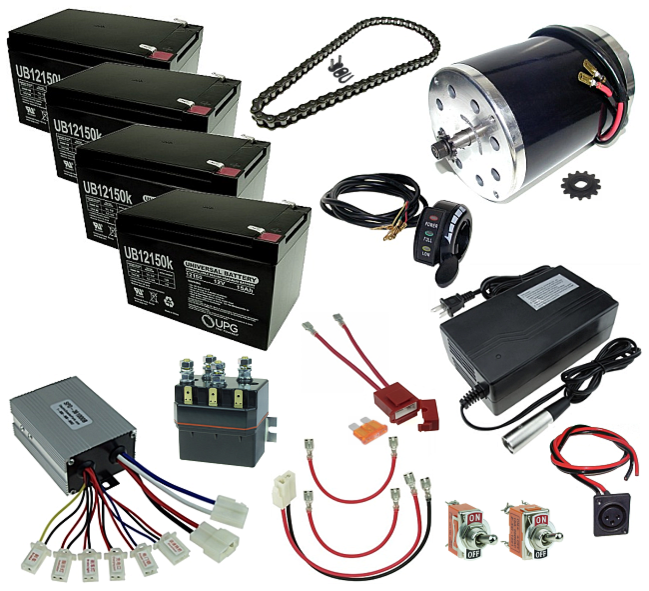

  • Four Quantity 12 Volt 15 Ah Batteries with 12 Month Warranty
  • 80 Links of Heavy Duty #25 Chain with Master Link
  • 48 Volt 1.6 Amp Automatic Battery Charger with 3-Pin XLR Plug
  • 3 Pin Black Nylon XLR Charger Port
  • 40 Amp ATO Blade Fuse
  • 48 Volt 1000 Watt Electric Scooter Motor
  • 48 Volt 150 Amp Motor Reversing Contactor
  • 48V 1000W Electric Scooter Speed Controller
  • 13 Tooth 10mm Double D-Bore Sprocket for #25 Chain
  • On-Off Toggle Power Switch, DPST 4-Terminal
  • On-Off-On Toggle Switch, SPDT 3-Terminal
  • Thumb Throttle with 48 Volt Power Meter
  • Battery Wiring Harness with Fuse Holder for 48 Volt Electric Scooters
