Wire Routing Chart
The Controller to Power Relay wires are approximately 6 Inches long.
Choose the chain and wire lengths which are needed in the 'Choose Your Options' box above.

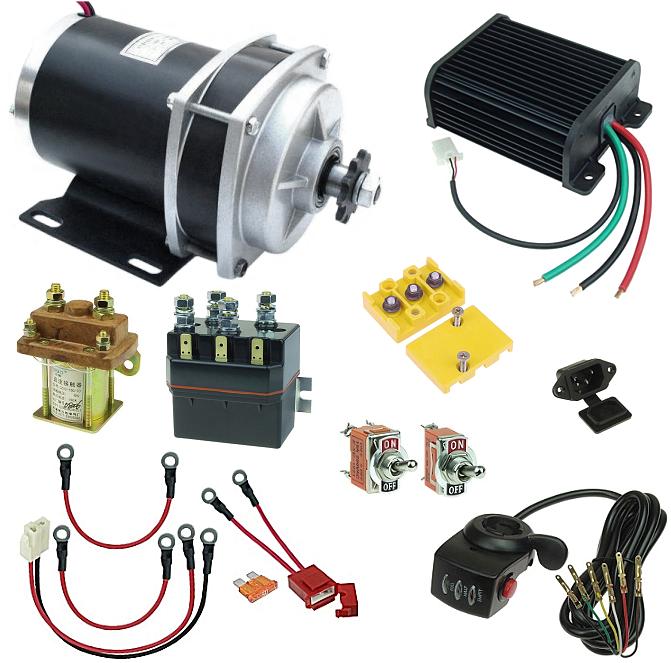

We install matching connectors on every part of this kit and label them so all you have to do is plug everything together.
For optimal power and performance the motor should be installed so
its shaft rotates clockwise when the vehicle is moving forward.
The key switch is the on/off power switch and the red push button switch on the throttle is the forward/reverse switch.
The motor in this kit has a factory-installed 11 tooth sprocket for
#420 chain. We have wheel and axle sprockets, freewheels, freewheel to
axle adapters, and sprocket to axle
hubs which can be used with this kit.
Need sprockets, axle adapters, freewheels, or chain? Click below to
view our full selection of sprockets, axle adapters, freewheels, and
chains.
