48 Volt 1000 Watt Electric Tricycle Brushless Gear Motor
- 48 Volt 1000 Watt brushless DC (BLDC) gear motor.

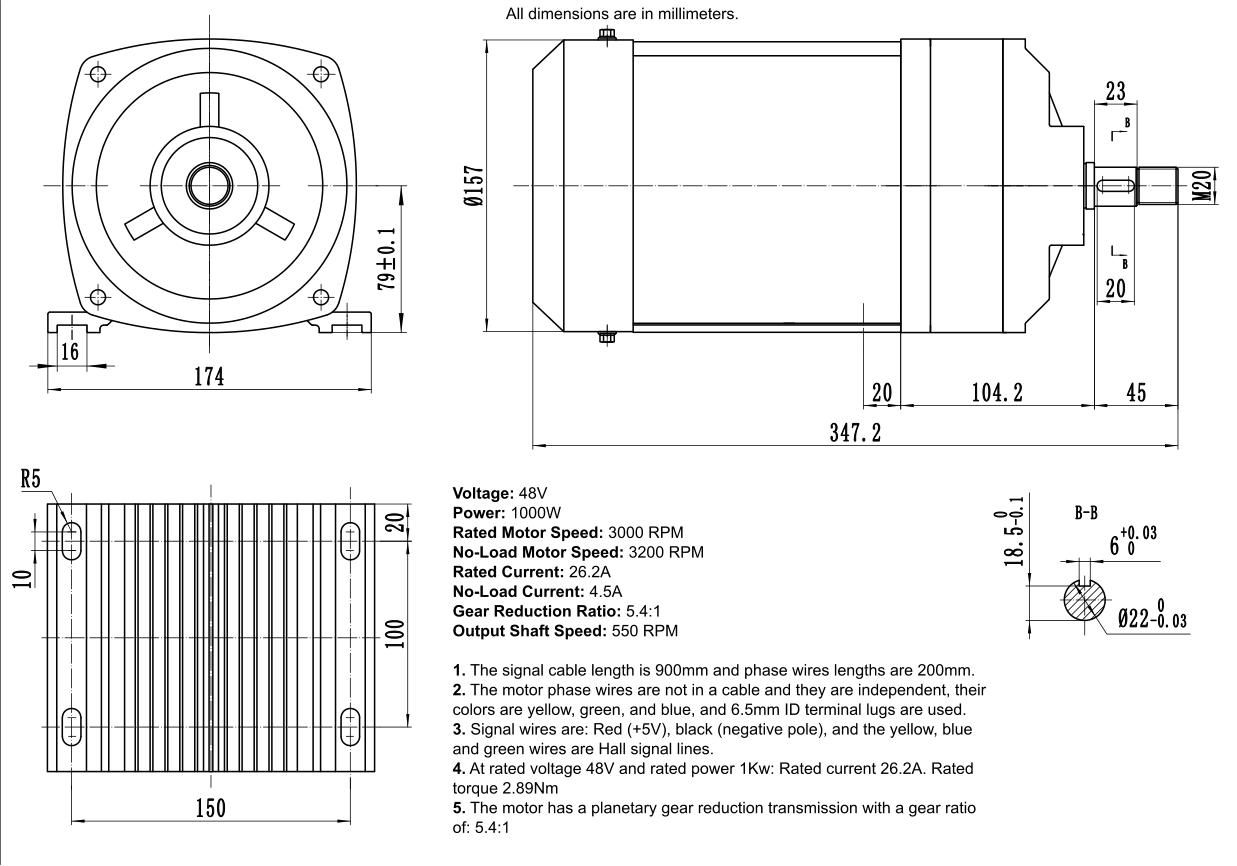

- Dimensions: 13.7" (347.2mm) long x 6.85" (174mm) wide including the mounting base.
- 22mm OD output shaft with keyway.
- Includes key and mounting nut with lock washer for the sprocket.
- Compatible with SPR-42816R2 Motor Sprocket.
Specifications
- Voltage: 48V
- Power: 1000W
- Rated Motor Speed: 3000 RPM
- No-Load Motor Speed: 3200 RPM
- Rated Current: 26.2A
- No-Load Current: 4.5A
- Gear Reduction Ratio: 5.4:1
- Output Shaft Speed: 550 RPM
1. The signal cable length is 35" (900mm) and the phase wire lengths are 7.87" (200mm).
2. The motor phase wires are not in a cable and are independent, their colors are yellow, green, and blue, and they have 6.5mm ID terminal lugs installed on them.
3. Signal wires are: Red (+5V), and black (negative pole), and the yellow, blue, and green wires are the Hall signal lines.
4. At rated voltage 48V and rated power 1Kw: Rated current is 26.2A. Rated torque is 2.89Nm.
5. The motor has a planetary gear reduction transmission with a gear ratio of: 5.4:1
