48 Volt 1000 Watt Electric Scooter Motor

Item #: MOT-481000
Availability: In Stock
Price: $129.95

    Quantity:

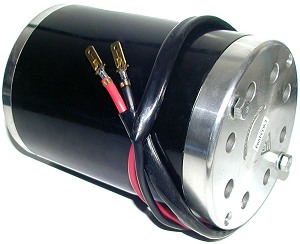

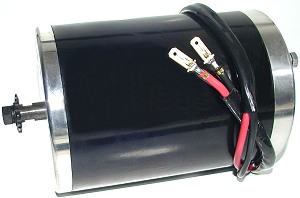

    48 Volt 1000 Watt Electric Scooter Motor

    • 48V 1000W electric scooter, go kart, and pocket bike motor.
    • Motor speed: 3000 RPM.
    • Powerful four brush permanent magnet design with 100% ball bearing construction.
    • 24" long power leads.
    • Shaft rotation reversible by reversing power leads.
    • Includes factory installed 11 tooth sprocket for 8mm chain.
    • Different size sprockets are available for this motor.
    • Motor shaft starts at 12mm OD and is stepped down to 10mm OD with two flat spots that are 8.5mm apart where the sprocket mounts, past the sprocket is an 8mm left hand threaded post for the nut and washer which holds the sprocket in place.
    • Dimensions: 4-1/4" wide x 6" long excluding shaft, 7" long including shaft.
    • Made by Unite®.
    • Cross references motor case number: MY1020
    • Weight 10 lbs.

    Dimensions: PDF
