Item #: KIT-481000-10
Availability: In Stock
Price: $663.30
    Power Switch Options:

    Motor Sprocket Options:

    #35 Chain with Master Link:

    Charger Port to Controller Wires:

    Motor to Reverse Relay Wires:

    Power Switch to Controller Wires:

    Power Switch to Reverse Switch Wires:

    Reverse Relay to Controller Wires:

    Reverse Switch to Reverse Contactor Wires:

    Throttle to Controller Wires:

    Voltmeter to Controller Wires:

    Battery Pack to Controller Wires:


    Update price
    Quantity:

    Wire Routing

    • The motor's forward direction is clockwise and reverse direction is counterclockwise. The motor should be installed so when the go-kart is traveling forward the motor runs in the clockwise direction.
    • Select the wire lengths of the kit above.
    • Select toggle switch or key switch power switch option above.
    • Select with or without Voltmeter option above. The Voltmeter lights up when the power switch is on and lets you know when the battery pack is getting low.
    • Select a 10-tooth motor sprocket for #35 chain or an 11-tooth motor sprocket for #41 and #420 chain above.

    We have axle and wheel sprockets for 8mm (T8F), #35, and #420 chain which can be used this kit. Click below to view our full selection of sprockets and chains.

    In Stock
    In Stock
    In Stock
    In Stock
    In Stock
    In Stock
    In Stock
    In Stock
    In Stock
    In Stock
    In Stock
    In Stock
    In Stock

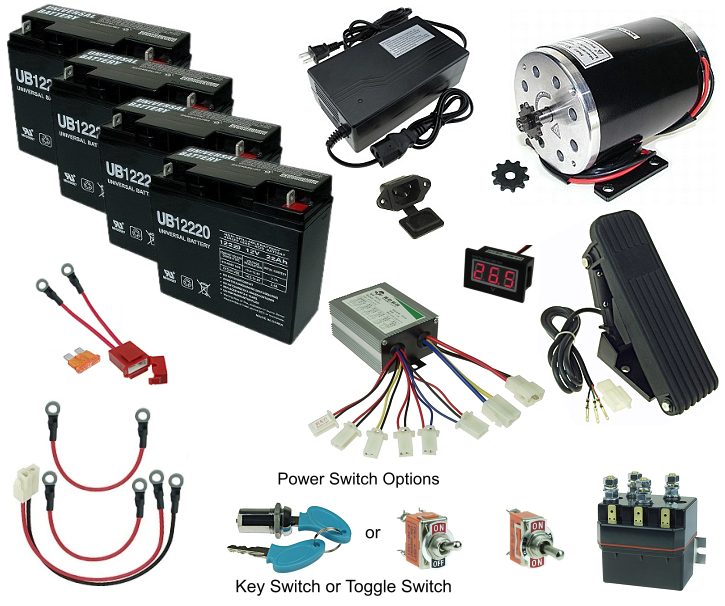

  • Four Quantity 12 Volt 22Ah Batteries with 12 Month Warranty
  • 48 Volt 2.5 Amp Automatic Battery Charger with 3-Port House Plug
  • 3 Pin House Port with Dust Cover
  • 48 Volt Battery Pack Wiring Harness with Fuse Holder and Fuse, 5mm Ring Terminals
  • 15-120 Volt DC Red LED Digital Voltmeter
  • 48 Volt 1000 Watt Electric Scooter Motor with Mounting Bracket
  • 48 Volt 150 Amp Motor Reversing Contactor
  • 48V 1000W Electric Scooter Speed Controller
  • 10 Tooth Sprocket with 10mm x 8.5mm Double D-Bore for #35 Chain
  • On-Off Toggle Power Switch, DPST 4-Terminal
  • On-Off-On Toggle Switch, SPDT 3-Terminal
  • Premium Foot Pedal Throttle
