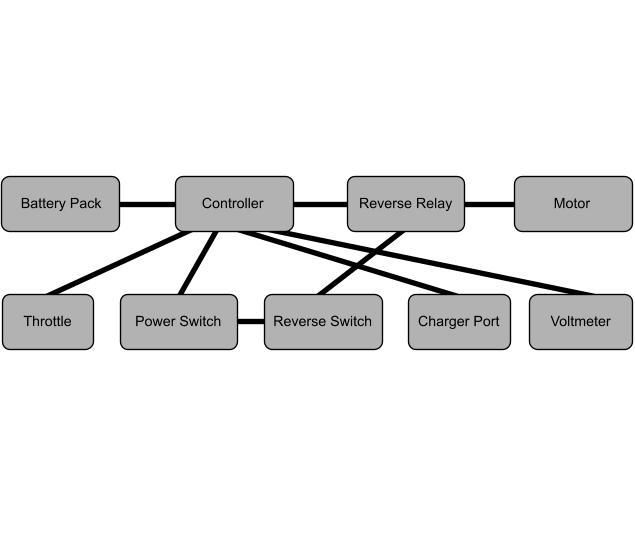

Wire Routing
- The motor's forward direction is clockwise and reverse direction is counterclockwise. The motor should be installed so when the go-kart is traveling forward the motor runs in the clockwise direction.
- Select the wire lengths of the kit above.
- Select toggle switch or key switch power switch option above.
- The Voltmeter lights up
when the power or key switch is on and lets you know when the battery pack Voltage is
getting low.
- A 10 tooth motor sprocket for #35 chain is included with this kit.
The motor in this kit has an 11 tooth sprocket for #25 chain which is factory installed and a 10 tooth motor sprocket for #35 chain is included with the kit. We have wheel and axle sprockets, freewheels, freewheel to axle adapters, and sprocket to axle hubs which can be used with this kit.
Need more sprockets and chain? Click below to view our full selection of sprockets and chains.

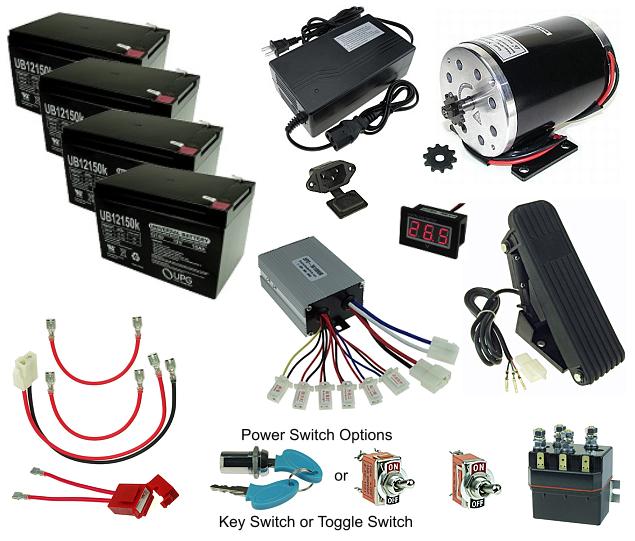

This kit contains the following parts and labor (click below for details):
This kit contains the following parts (click below for details):
|
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
|
Labor to install matching connectors on every part of this kit and label them so all you have to do is plug everything together.
Four Quantity 12 Volt 15 Ah Batteries with 12 Month Warranty
48 Volt 1.6 Amp Automatic Battery Charger with 3-Port House Plug
3 Pin House Port with Dust Cover
40 Amp ATO Blade Fuse
15-120 Volt DC Red LED Digital Voltmeter
48 Volt 1000 Watt Electric Scooter Motor with Mounting Bracket
48 Volt 150 Amp Motor Reversing Contactor
48V 1000W Electric Scooter Speed Controller
10 Tooth Sprocket with 10mm x 8.5mm Double D-Bore for #35 Chain
On-Off Toggle Power Switch, DPST 4-Terminal
On-Off-On Toggle Switch, SPDT 3-Terminal
Premium Foot Pedal Throttle
Battery Wiring Harness with Fuse Holder for 48 Volt Battery Packs
|
$35.00,$179.80,$44.95,$4.95,$0.95,$14.95,$129.95,$59.95,$49.95,$9.95,$2.95,$2.95,$34.95,$14.95
The total of the individual parts and labor in this kit is
One or more of the parts in this kit is currently In StockIn StockIn StockIn StockIn StockIn StockIn StockIn StockIn StockIn StockIn StockIn StockIn StockIn Stock.
