48 Volt 1000 Watt Auranthetic Mini Bike Repower Kit
This is a modification kit which requires custom installation of the parts. Custom installation may require cutting, drilling, and fabricating.
Wire Lengths
- Key switch to controller wires: 36"
- Toggle switch to DC-DC converter wires: 36"
- Charger port to controller wires: 36"
- These wire lengths can be changed on request.
Kit Notes
- The key switch turn the power on and off to the controller and the toggle switch turns the power on and off to the 12 Volt DC-DC Voltage converter.
- The Voltage converter has 24" leads to wire to the existing lighting system.
Here is an example of a custom installation that one of our customers did with this kit. Click on the photo to open a larger image in a new tab or window.

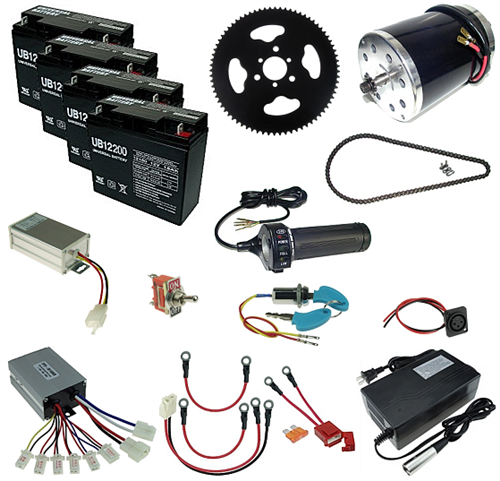

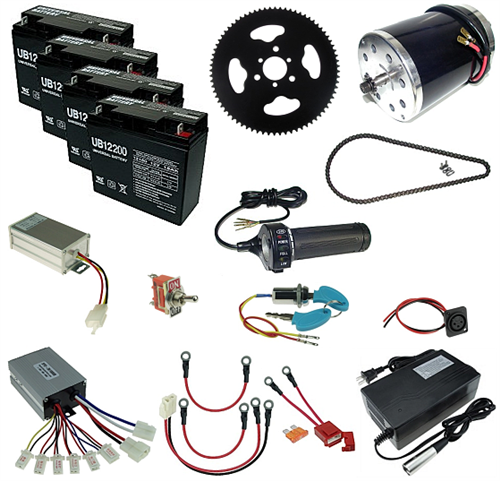

This kit contains the following parts and labor (click below for details):
This kit contains the following parts (click below for details):
|
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
Out of Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
|
Labor to install matching connectors on every part of this kit and label them so all you have to do is plug everything together.
Four Quantity 12 Volt 22Ah Batteries with 12 Month Warranty
8mm Chain Master Link
48 Volt 3 Amp Automatic Battery Charger with 3-Pin XLR Plug
3 Pin Black Nylon XLR Charger Port
24-72 Volt DC to 12 Volt DC 10A DC-DC Voltage Converter
48 Volt Battery Pack Wiring Harness with Fuse Holder and Fuse, 5mm Ring Terminals
48 Volt 1000 Watt Electric Scooter Motor
48V 1000W Electric Scooter Speed Controller
2 Wire Key Switch with 2 Keys
On-Off Toggle Switch, SPST 2-Terminal
Standard Twist Throttle with 48V LED Meter
74 Tooth 8mm Chain Conversion Sprocket for Auranthetic Electric Motorcycle
134 Links Of 8mm Chain with Master Link
|
$35.00,$239.80,$1.49,$49.95,$3.95,$19.95,$25.95,$129.95,$49.95,$11.95,$2.95,$24.95,$34.95,$26.40
The total of the individual parts and labor in this kit is
One or more of the parts in this kit is currently In StockIn StockIn StockIn StockIn StockIn StockIn StockOut of StockIn StockIn StockIn StockIn StockIn StockIn Stock.
Notify Me When This Kit is Back in Stock
