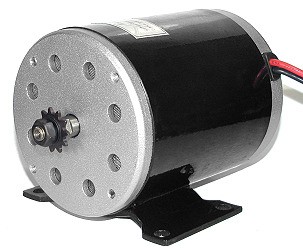

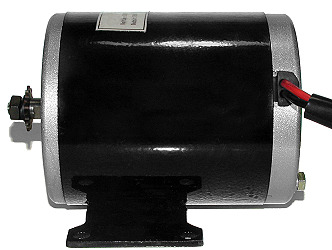

36 Volt 750 Watt Electric Scooter Motor
- 36V 750W 2800 RPM electric scooter motor.
- Powerful four brush permanent magnet design with 100% ball bearing construction.
- Includes 11 tooth sprocket for #25 chain. 8.5mm x 10mm sprocket mounting area.
- Different size sprockets are available for this motor.
- 18" long power leads.
- Shaft rotation reversible by reversing power leads.
- Motor shaft starts at 12mm OD and is stepped down to 10mm OD with two flat spots that are 8.5mm apart where the sprocket mounts, past the sprocket is an 8mm left hand threaded post for the nut and washer which holds the sprocket in place.
- Mounting bracket measures 4-3/4" x 2-7/8" and has 4 holes that are spaced 4" x 2-1/4" apart.
- Dimensions: 4-1/4" outside diameter x 5-1/4" long excluding shaft, 6-1/4" long including shaft.
- Weight 9.2 lbs.
- Made by Unite®.
- Cross reference numbers: ZY1020, MY1020
Motor Dimensions: PDF
