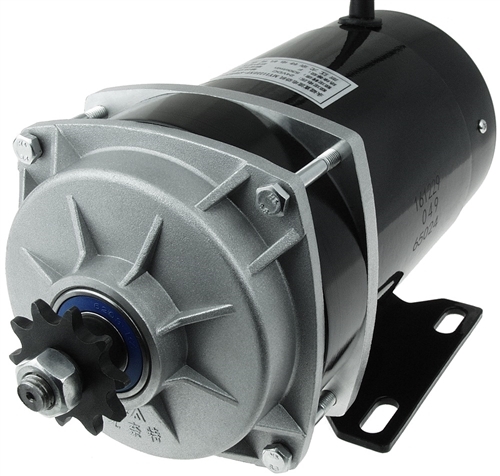

36 Volt 650 Watt Planetary Gear Motor with Cooling Fan
- 36V 650W electric bicycle, tricycle, and go-kart motor with built-in planetary gear reduction transmission and cooling fan.
- Motor speed 3200 RPM.
- Gear ratio: 6:1
- Output shaft speed 530 RPM.
- Shaft diameter where sprocket seats into is 12mm x 17mm with a dual D-bore.
- Includes 10 tooth sprocket for #41 and #420 chain (both of these chain sizes work with this motor's sprocket).
- Powerful four brush permanent magnet design with 100% ball bearing construction.
- 12 gauge power leads.
- Shaft rotation reversible by reversing power leads.
- Mounting base measures 142mm (5.59") x 115mm (4.53") with 4 mounting holes.
- Mounting holes are spaced 122mm (4.8") center to center across by 80mm (3.15") center to center across.
- Weight 17 lbs.
- Made by Unite®.
Motor Dimensions: PDF
