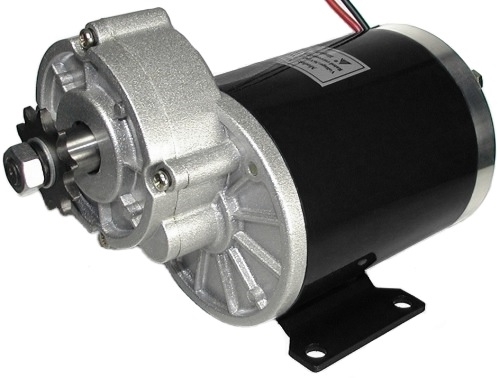

36 Volt 600 Watt Gear Motor
- 36V 600W electric bicycle, tricycle, beach wagon, and go-kart motor with built-in gear reduction transmission.
- Motor speed 3200 RPM.
- Gear ratio: 60:9 (6.67).
- Output shaft speed 480 RPM.
- Includes 10 tooth sprocket for #41 and #420 chain (both of these chain sizes work with this motor's sprocket).
- Powerful four brush permanent magnet motor design with 100% ball bearing construction.
- 24" long 12 AWG power leads.
- Shaft rotation reversible by reversing power leads.
- Mounting bracket measures 4-3/4" x 2-7/8" and has 4 holes that are spaced 4" x 2-1/4" apart.
- Motor dimensions: 4-1/4" outside diameter x 5-1/2" long excluding transmission and output shaft, 8-1/2" long including transmission and output shaft.
- Weight 11.95 lbs.
- Made by Unite.
- Cross references motor case: MY1020Z
Motor Dimensions: PDF
