This kit is electronically 100% plug-and-play. We install matching connectors on every part of this kit and label them so all you have to do is plug everything together.
Wire Lengths: (wire lengths can be changed on request)
- Charger port controller wire length 18 inches.
- Battery pack to controller wire length 18 inches.
- Motor to controller wire length 24 inches.
- Throttle to controller wire length 64 inches.
- Switch to controller wire length 65 inches.
Kit Features:
- Switch on thumb throttle activates forward/reverse.
- Separate handlebar mount switch activates power on/off.
- Brake lever turns off motor when it is pulled. Power to motor resumes when brake lever is released.
- Battery pack wiring harness has 1/4" ID ring terminals.
Reverse Feature Warning:
- Wagon must be at a complete stop before switching from forward to reverse, or reverse to forward. Otherwise damage to the controller or relays may occur.
Wheel and Axle Sprockets:
The motor in this kit has an 10 tooth sprocket for #420 chain. We have wheel and axle sprockets for #420 chain and sprocket to axle adapters which can be used with this kit.
Need axle or wheel sprockets and adapters? Click below to view our full selection of sprockets and chains.

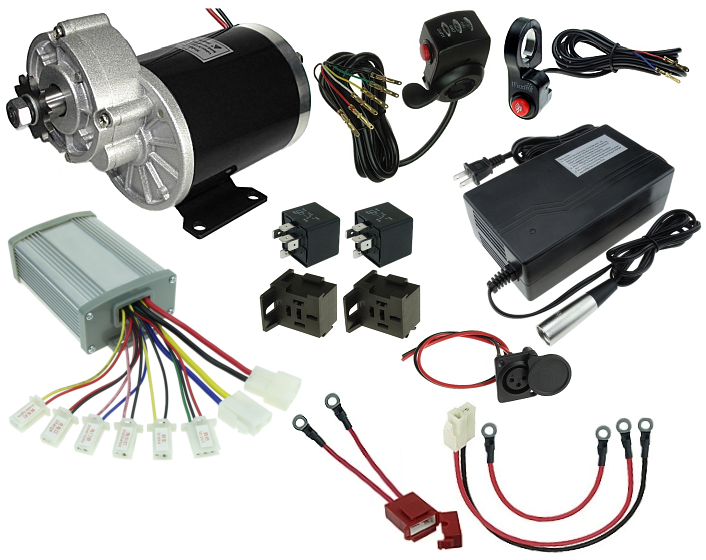

This kit contains the following parts and labor (click below for details):
This kit contains the following parts (click below for details):
|
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
|
Labor to install matching connectors on every part of this kit and label them so all you have to do is plug everything together.
36 Volt 3 Amp Automatic Battery Charger with 3-Pin XLR Plug
3 Pin Black Nylon XLR Charger Port with Cover
40 Amp ATO Blade Fuse
36 Volt Battery Pack Wiring Harness with Fuse Holder and Fuse, 6.3mm Ring Terminals
36 Volt 600 Watt Gear Motor
Bosch Type Relay Wiring Connector with Mounting Tab
36 Volt 80 Amp Bosch Type SPDT Relay
36 Volt 1000 Watt Speed Controller
Handlebar Mount On/Off Power Switch
Thumb Throttle with 36 Volt Power Meter and Latching On/Off Switch
|
$35.00,$44.95,$3.95,$0.95,$16.95,$149.95,$2.49,$5.95,$49.95,$11.95,$21.95
The total of the individual parts and labor in this kit is
One or more of the parts in this kit is currently In StockIn StockIn StockIn StockIn StockIn StockIn StockIn StockIn StockIn StockIn Stock.
Notify Me When This Kit is Back in Stock
